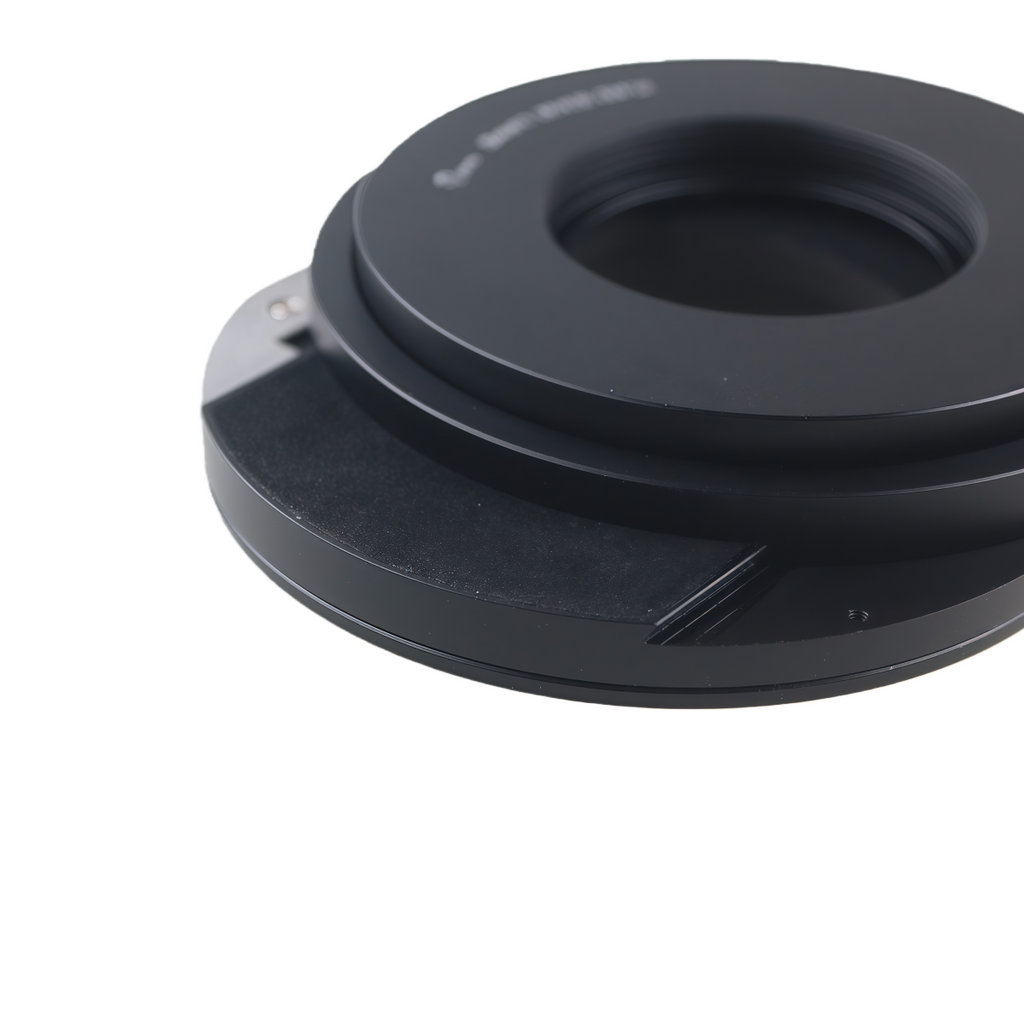

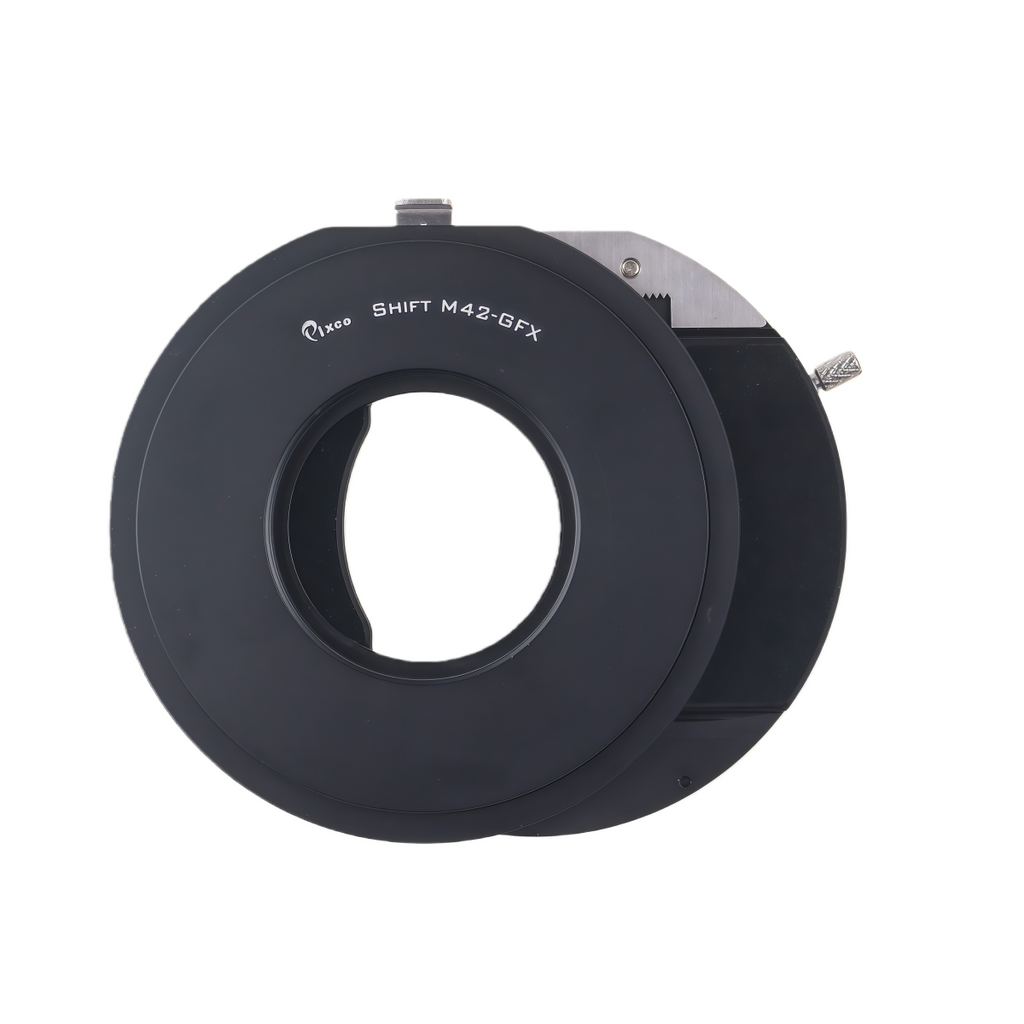

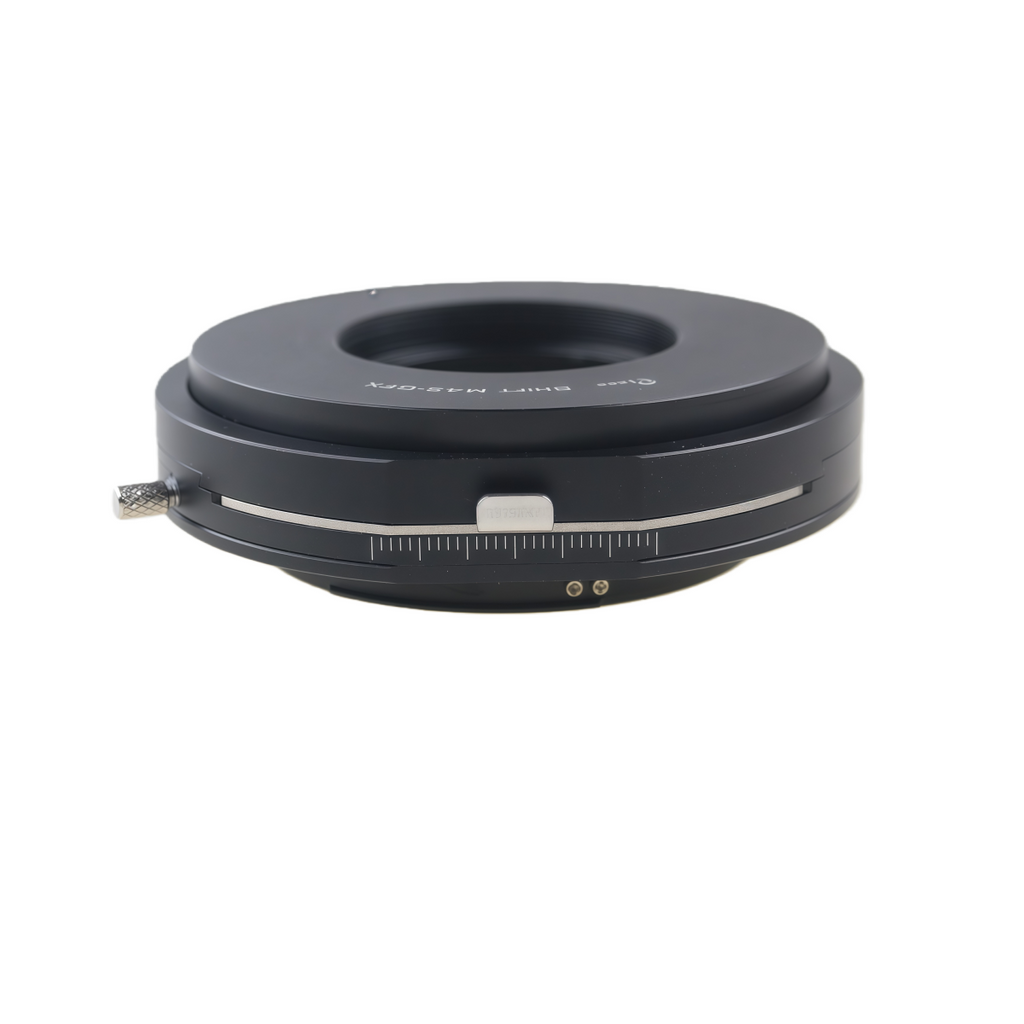

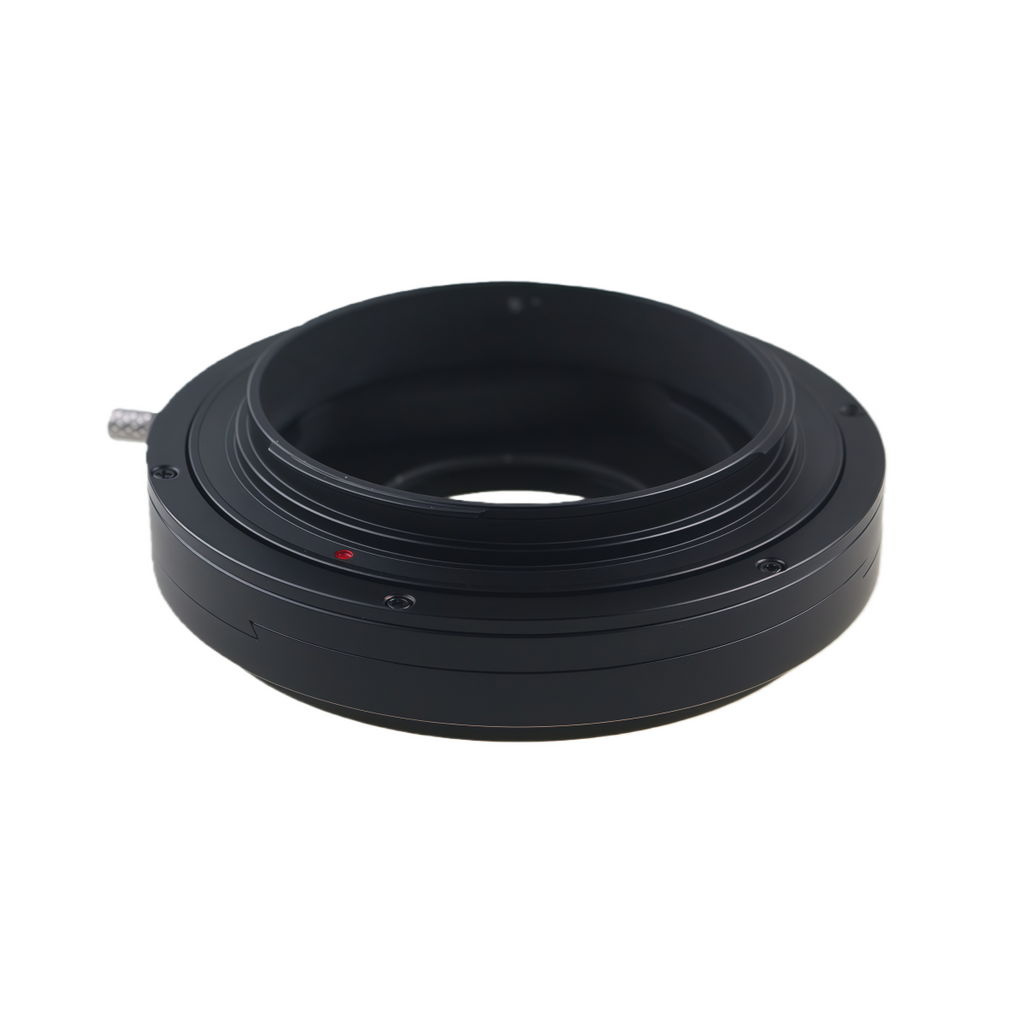

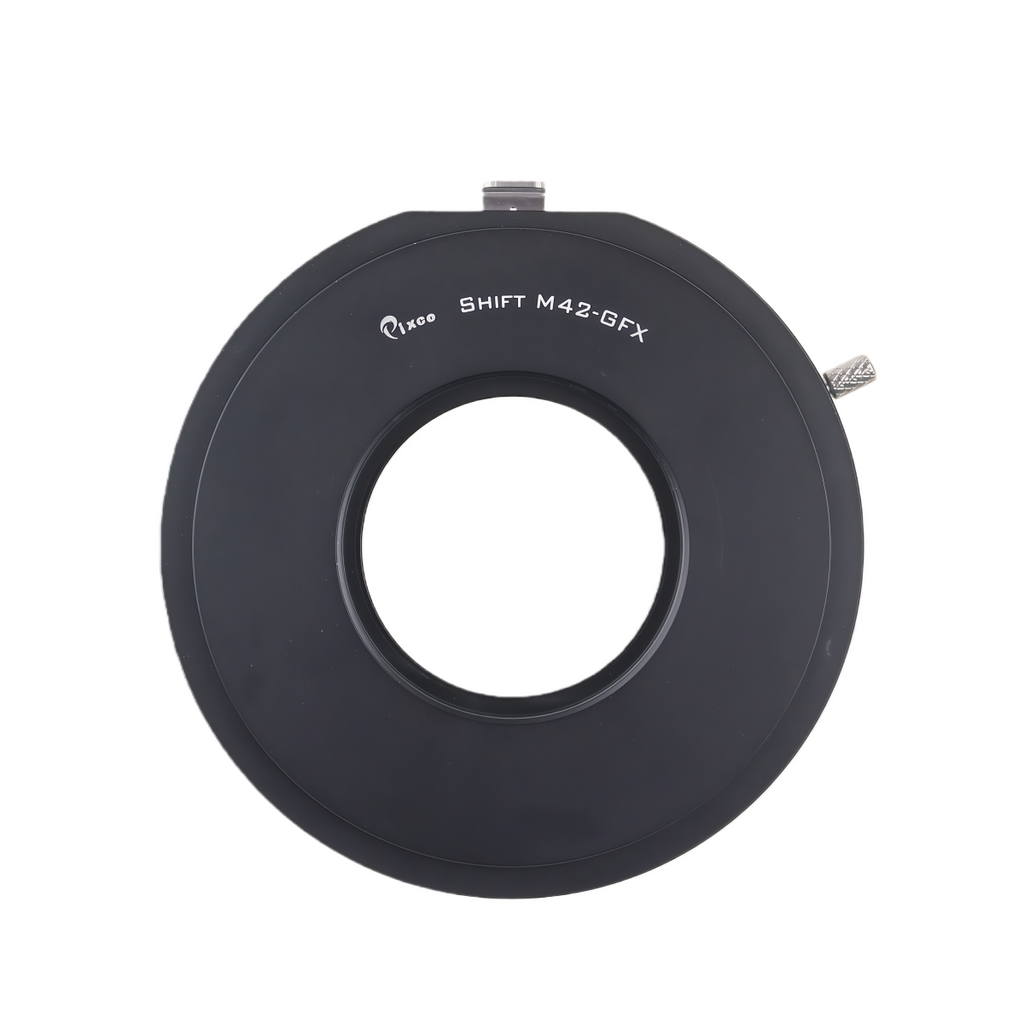

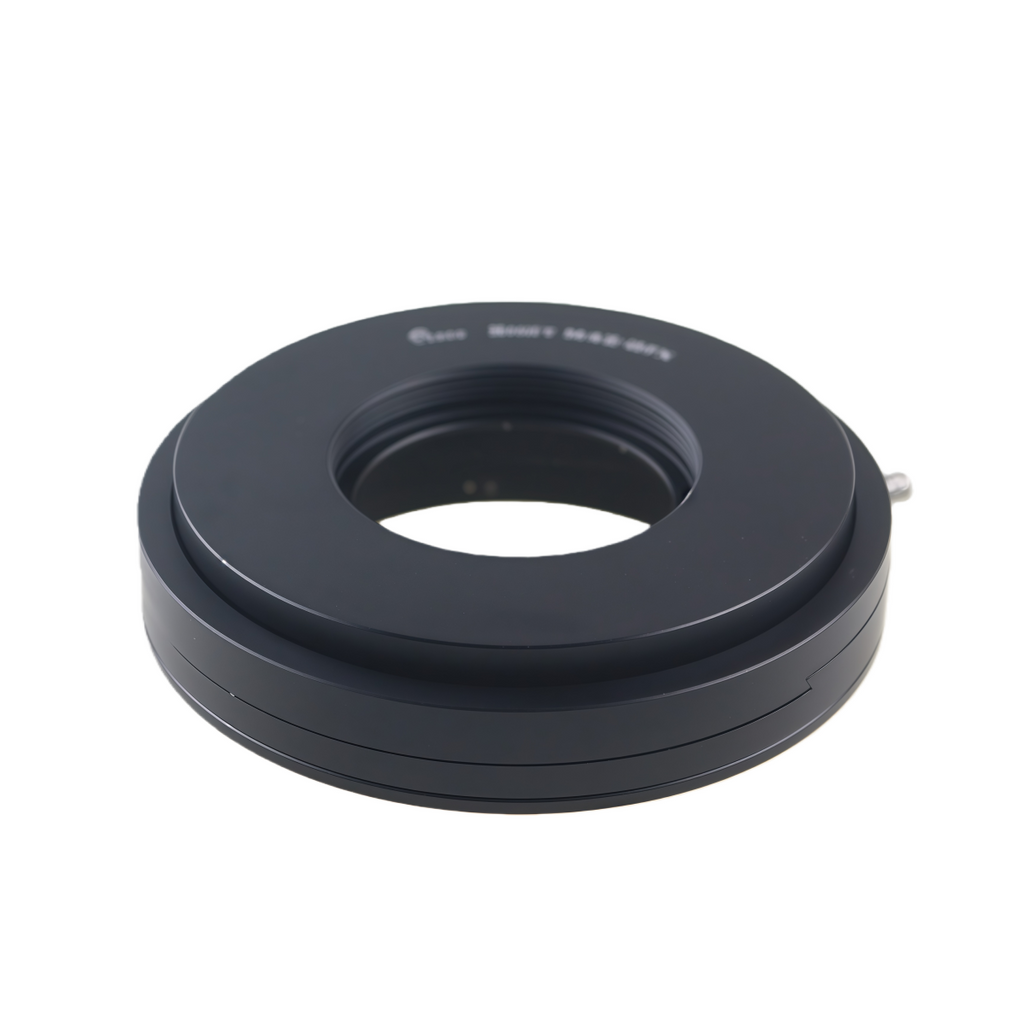

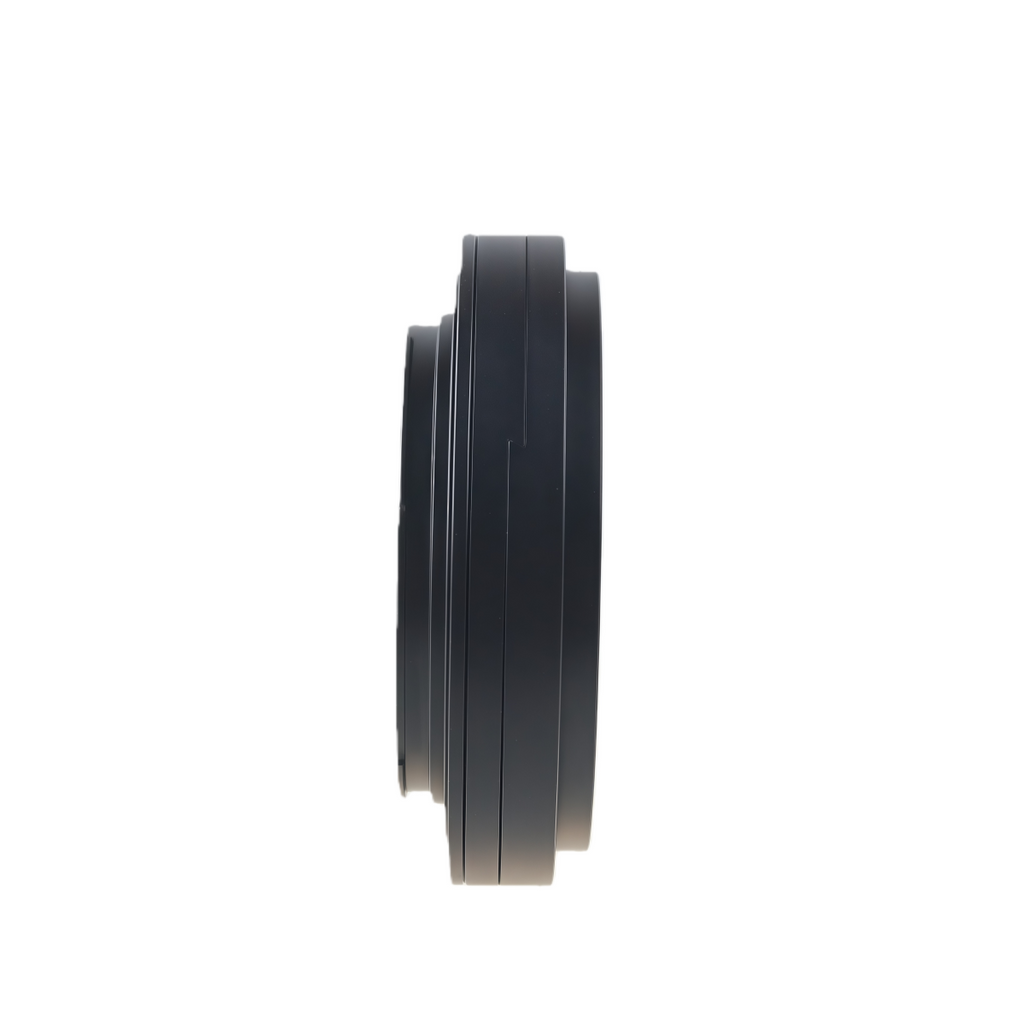

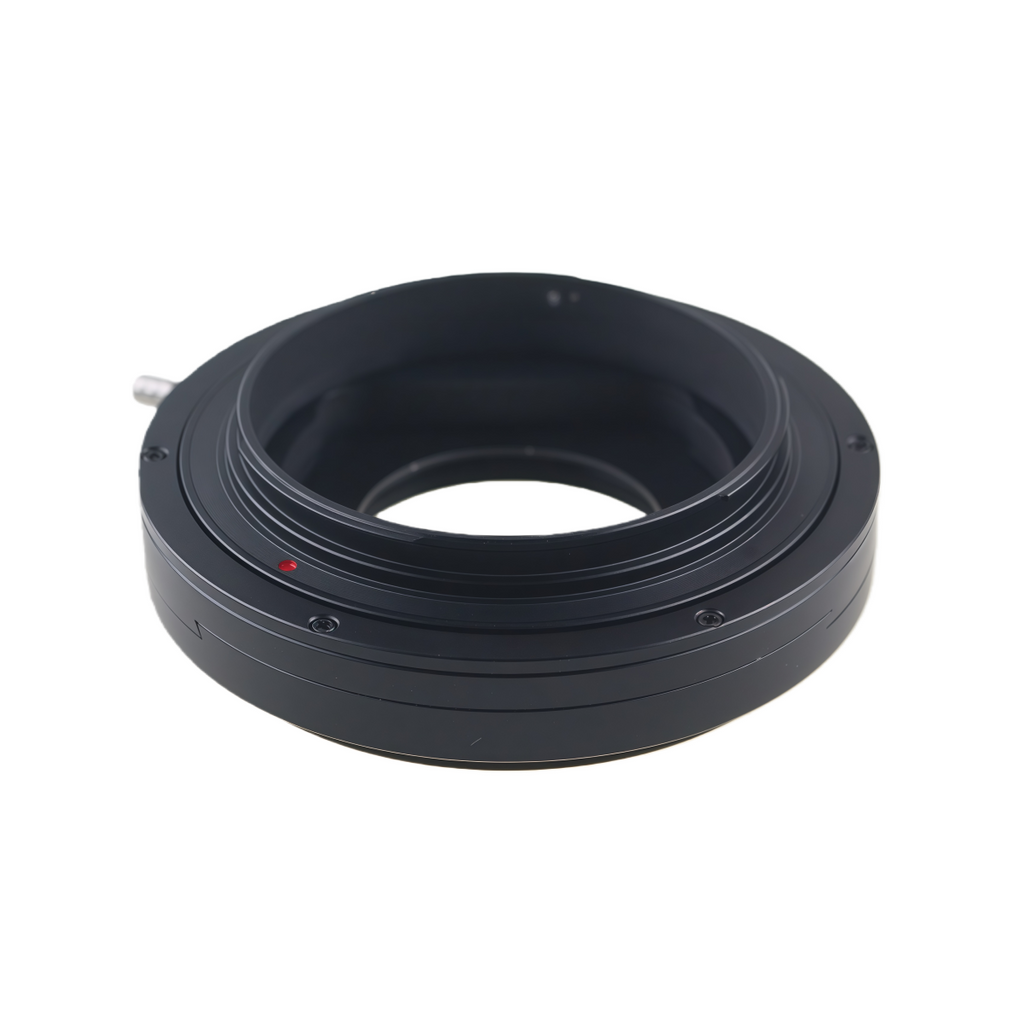

20mm Shift & Built-in Focus Flange M42-FujiFilm GFX Adapter

PixcoSKU: 011477

Price:
Sale price$128

Shipping calculated at checkout

Description

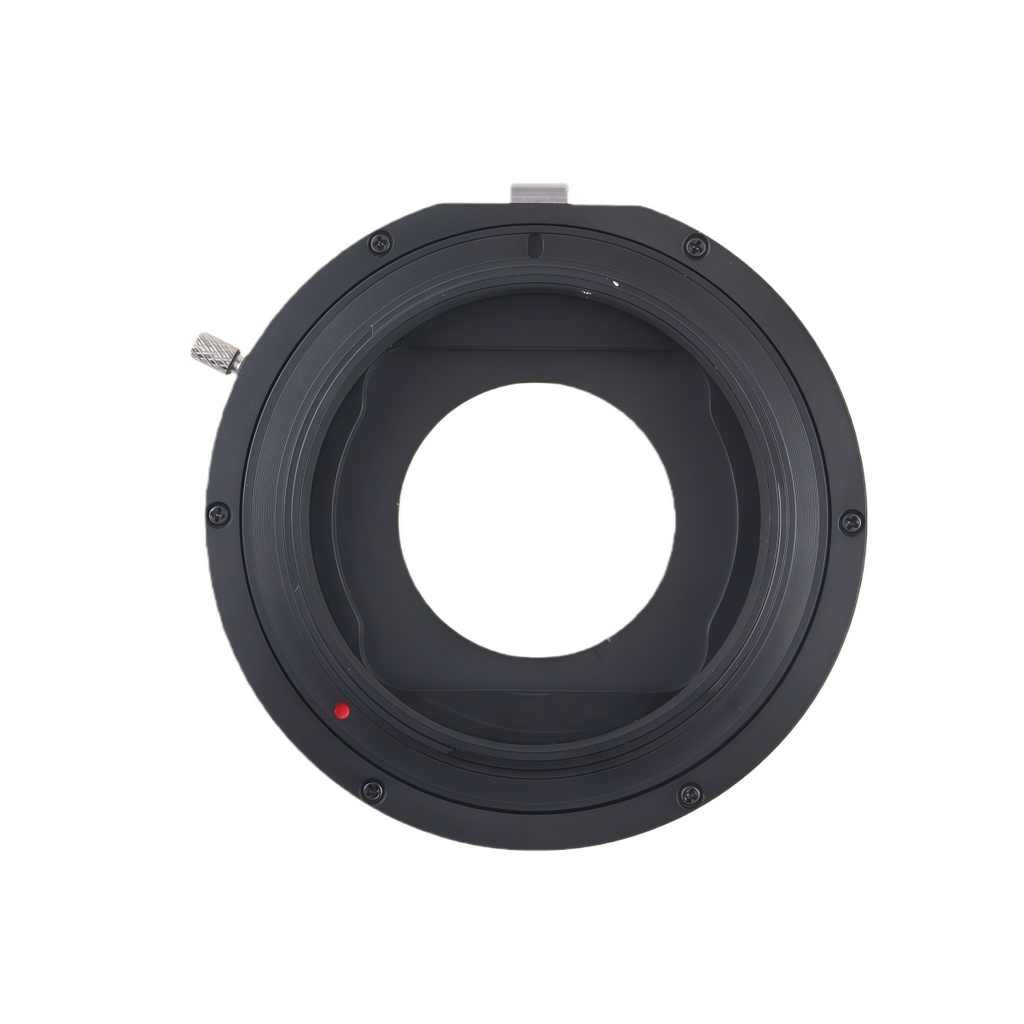

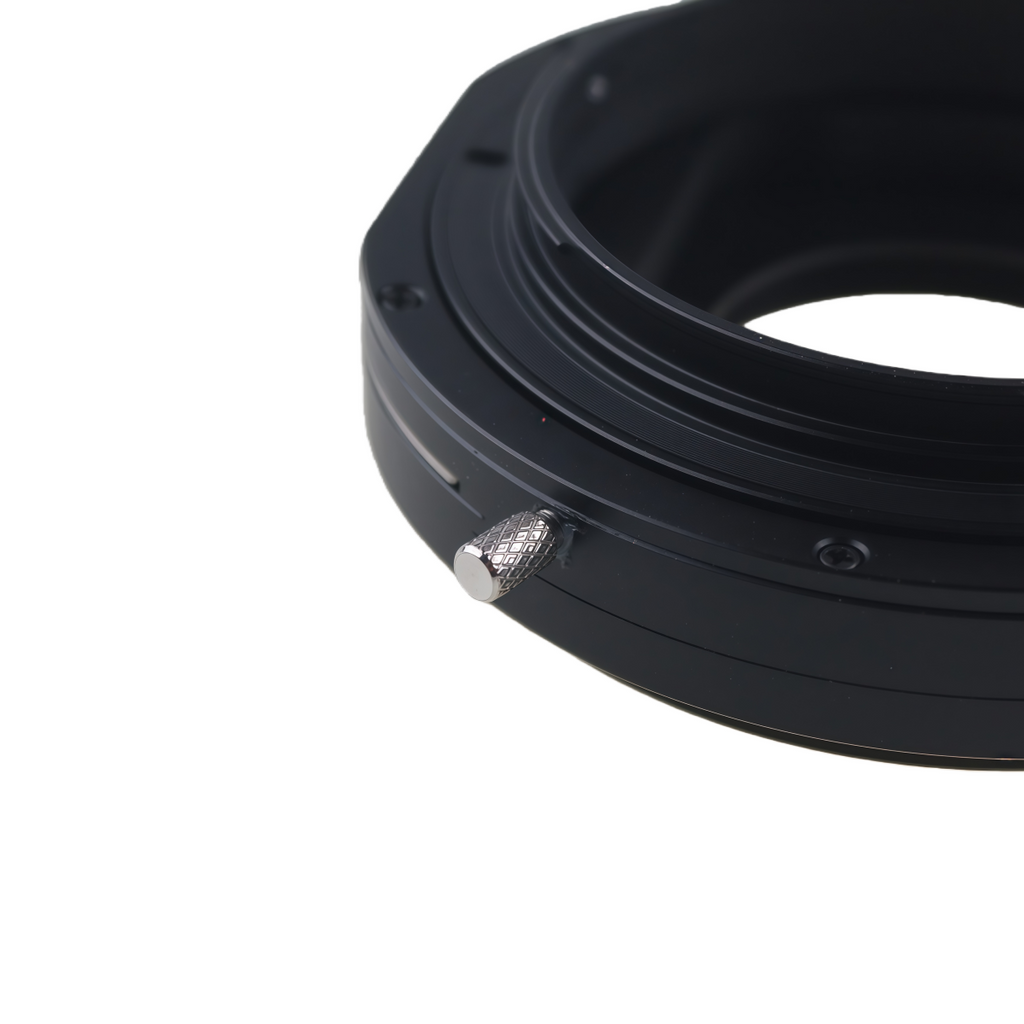

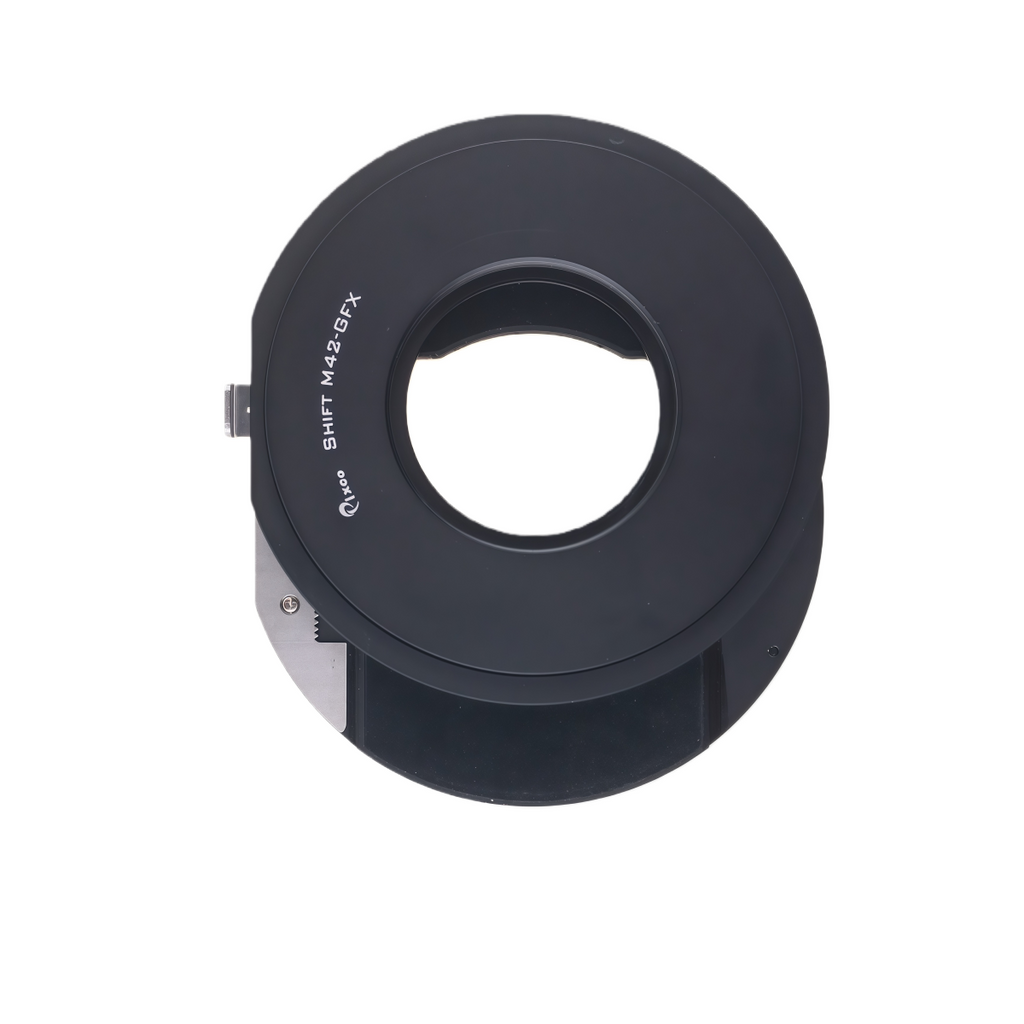

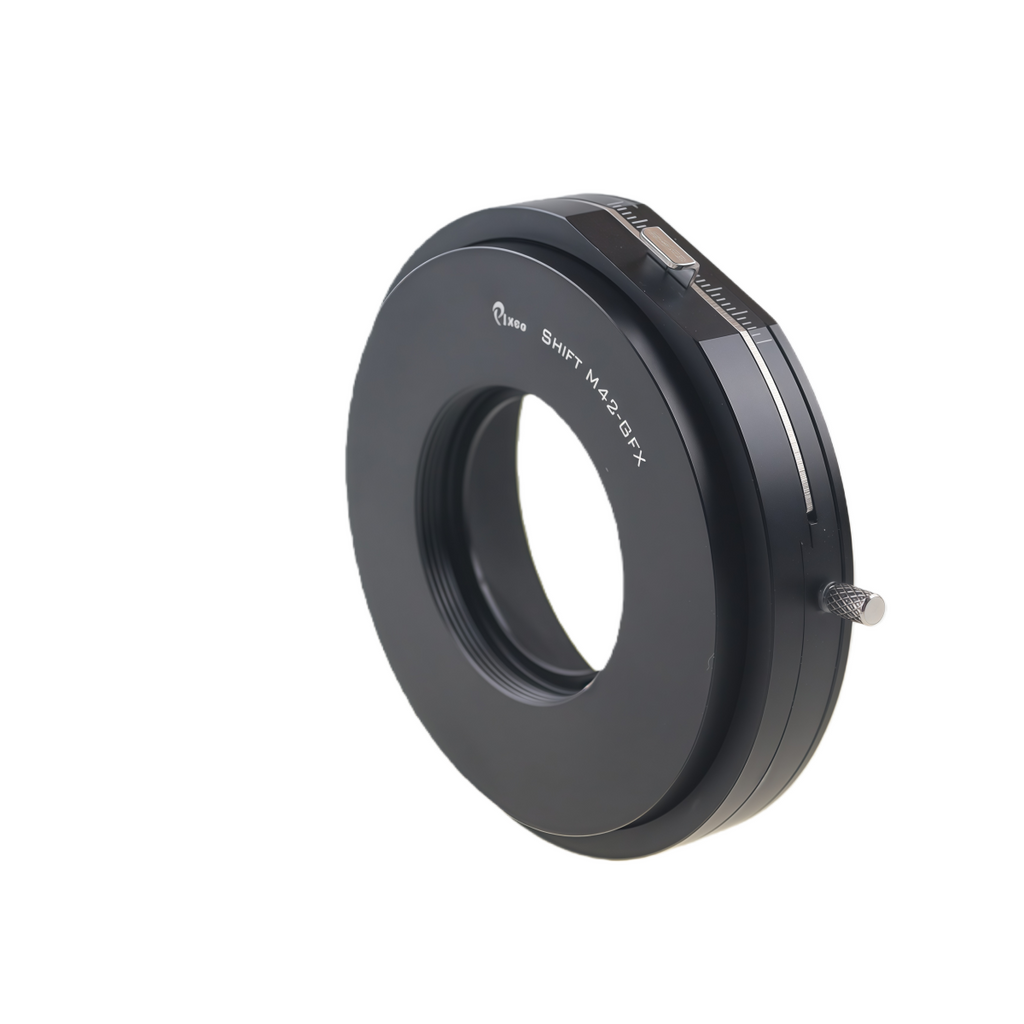

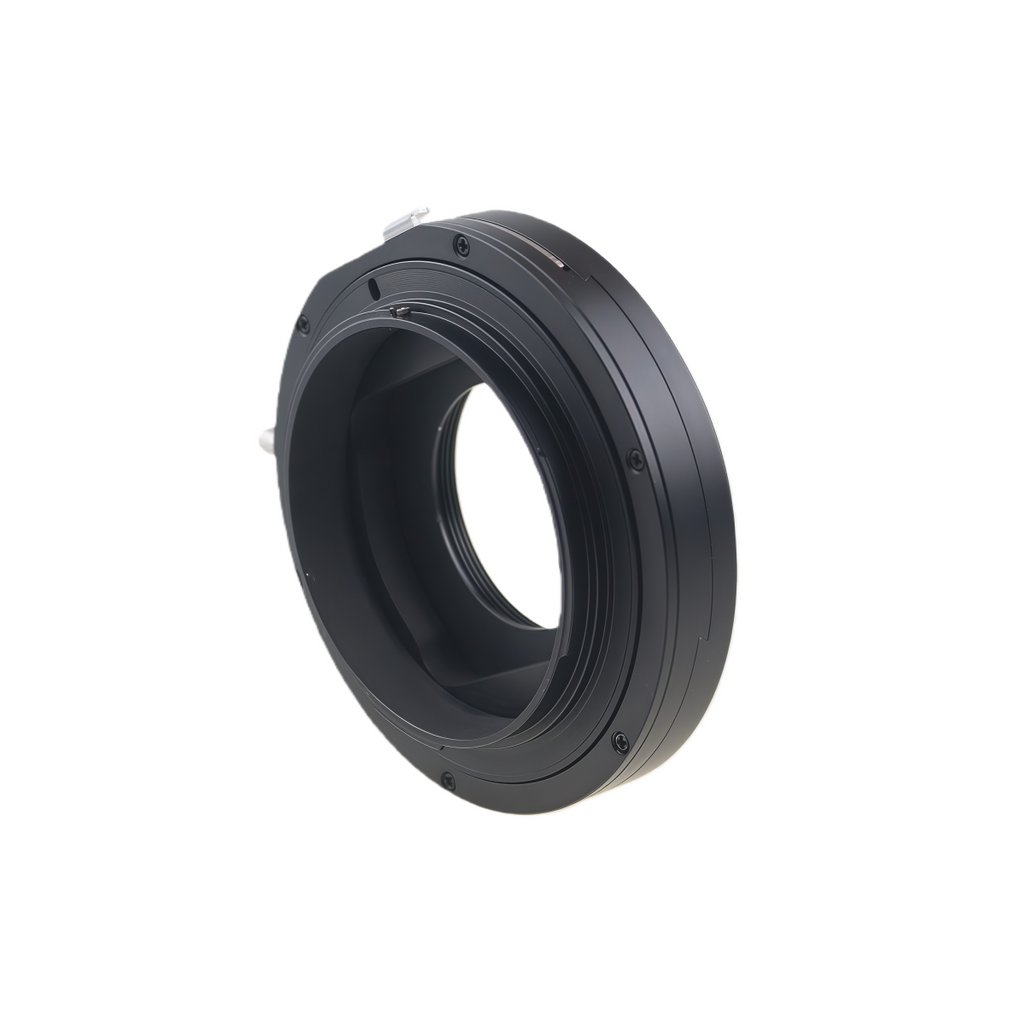

Pixco Mount Adapter Ring with Flange for M42 Lens to Fujifilm GFX Camera with 20mm Shift & Built-in Focus for GFX100 II



Description

This professional shift adapter is engineered for medium format photography that demands precise perspective control and creative imaging. It seamlessly bridges classic M42 screw mount lenses with the modern Fujifilm GFX digital medium format system. Featuring a built-in focusing helicoid, it allows for full-range focus from close-up to infinity without any additional accessories. Combined with 20mm of shift, 360° free rotation, and an integrated flange (pressure edge) design, it unlocks new creative possibilities for architectural, still life, and imaginative photography.



Key Features

All-in-One Focus & Shift: The integrated precision focusing helicoid enables direct use with M42 lenses, eliminating the need for a separate focusing unit. This offers a more compact and convenient system.

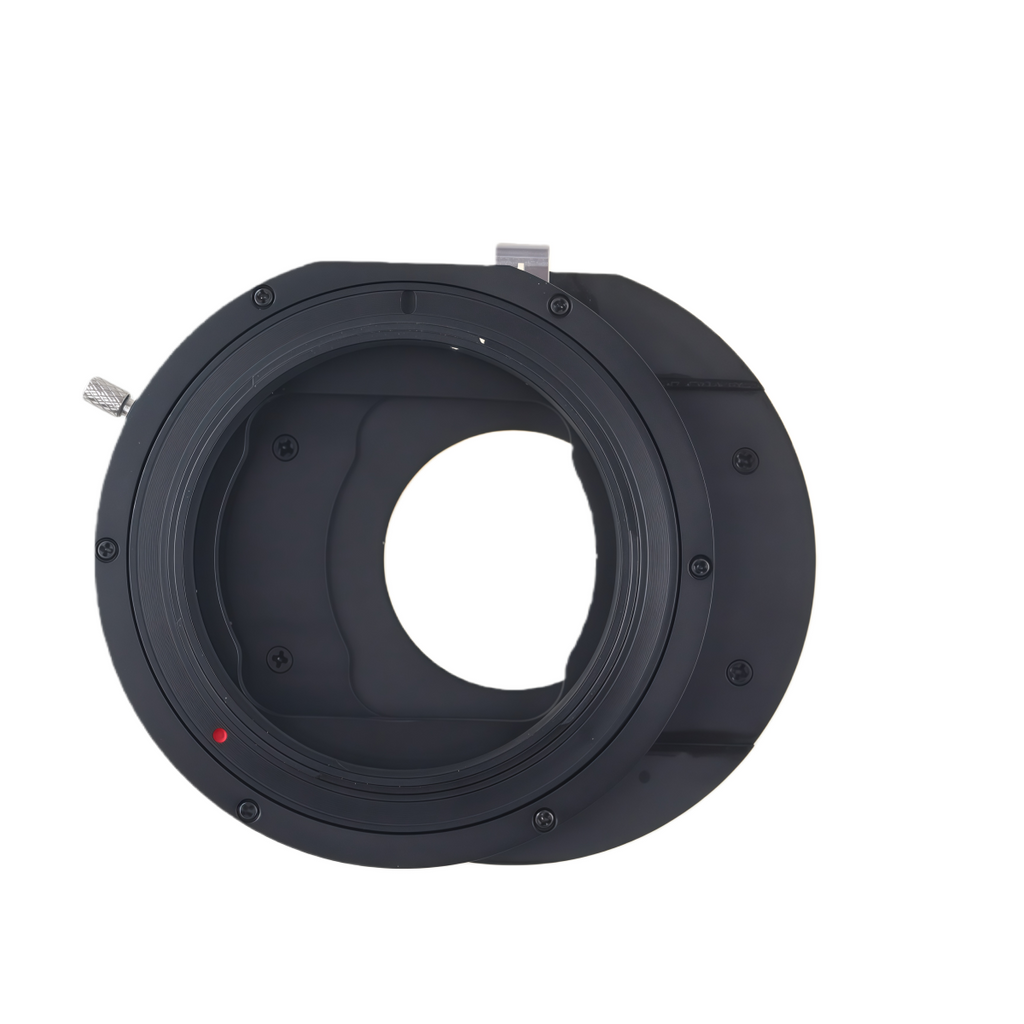

Professional Shift Function: Provides ±10mm (20mm total) of vertical/horizontal shift to correct converging lines in architectural shots or to create unique visual effects.

Full Rotation Capability: 360° of continuous, click-free rotation allows for free adjustment of the shift direction, enabling complete perspective control and creative composition.

Built-in Flange (Pressure Edge): A precision flange structure at the lens mount ensures tight contact with the lens barrel, preventing displacement during infinity focus and enhancing system stability and image consistency.

Optimized for Medium Format: Designed to maximize the image circle coverage of M42 lenses and the potential of the medium format sensor, aiming for excellent edge-to-edge image quality.

Precision Metal Construction: CNC machined from high-quality metals for a solid, durable build with smooth operation, meeting professional reliability standards.



Important Usage Notes

Fully Manual Operation: Focus, shift, rotation, and locking are all manually controlled. Use of a sturdy tripod is highly recommended for optimal stability.

Flange Adjustment: When mounting the lens, ensure the flange fully presses against the lens edge to avoid gaps affecting optical performance.

Camera Setting: Enable “Shoot without lens” in your camera menu before use.

Lens Compatibility: For standard M42 screw mount lenses. Operation is fully manual (focus & aperture control) after adaptation.



Compatibility

Lens Side: Standard M42 screw mount lenses.

Camera Side: Fujifilm GFX medium format mirrorless camera system.

Latest Model: GFX100 II

Other Models: GFX100S II, GFX100S, GFX100, GFX50S II, GFX50R, GFX50S, etc.



Specifications

Shift Range: ±10mm (20mm total travel)

Rotation: 360° continuous

Focusing: Built-in focusing helicoid (No separate unit required)

Flange Design: Metal pressure edge, optimized for M42 lens flange

Lens Mount: M42 Screw Mount

Camera Mount: Fujifilm G Mount (GFX)



Package Includes

M42 to Fujifilm GFX Shift Adapter (with flange) × 1
