Description

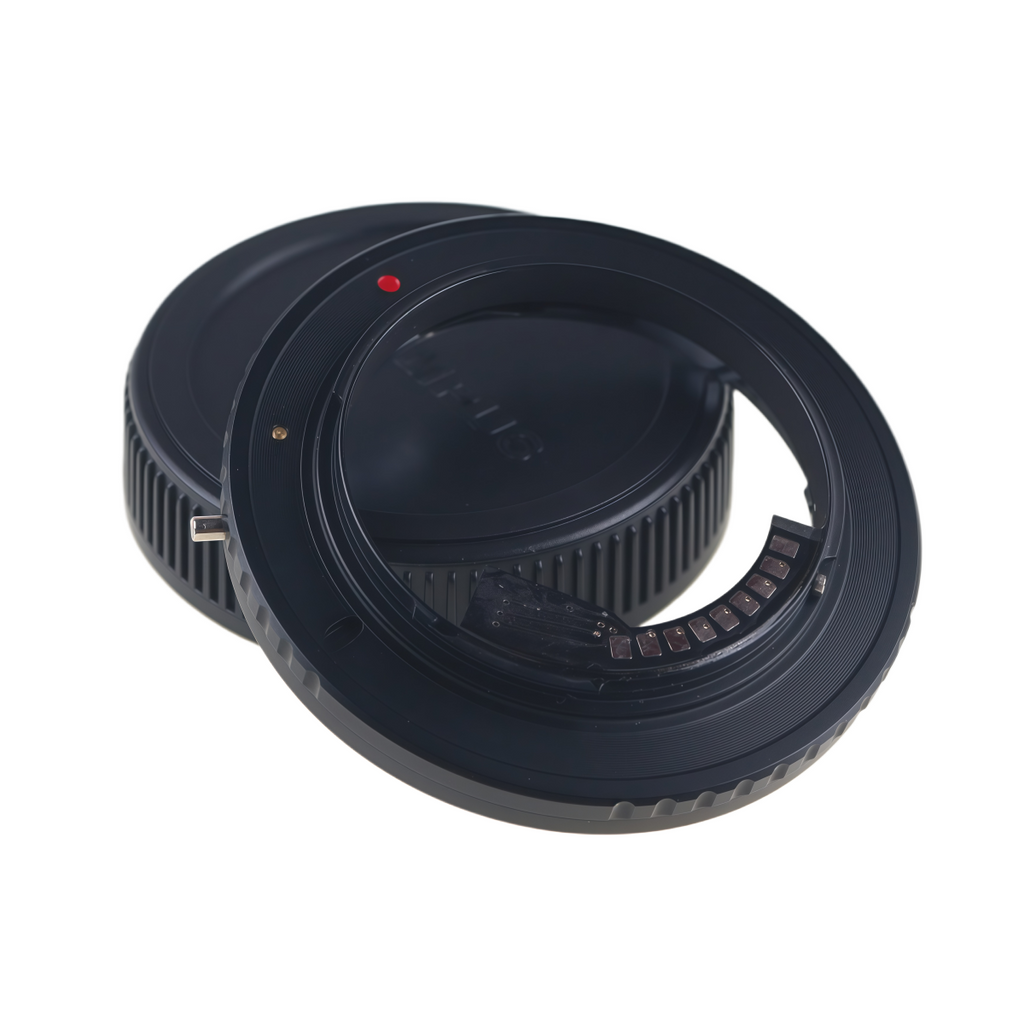

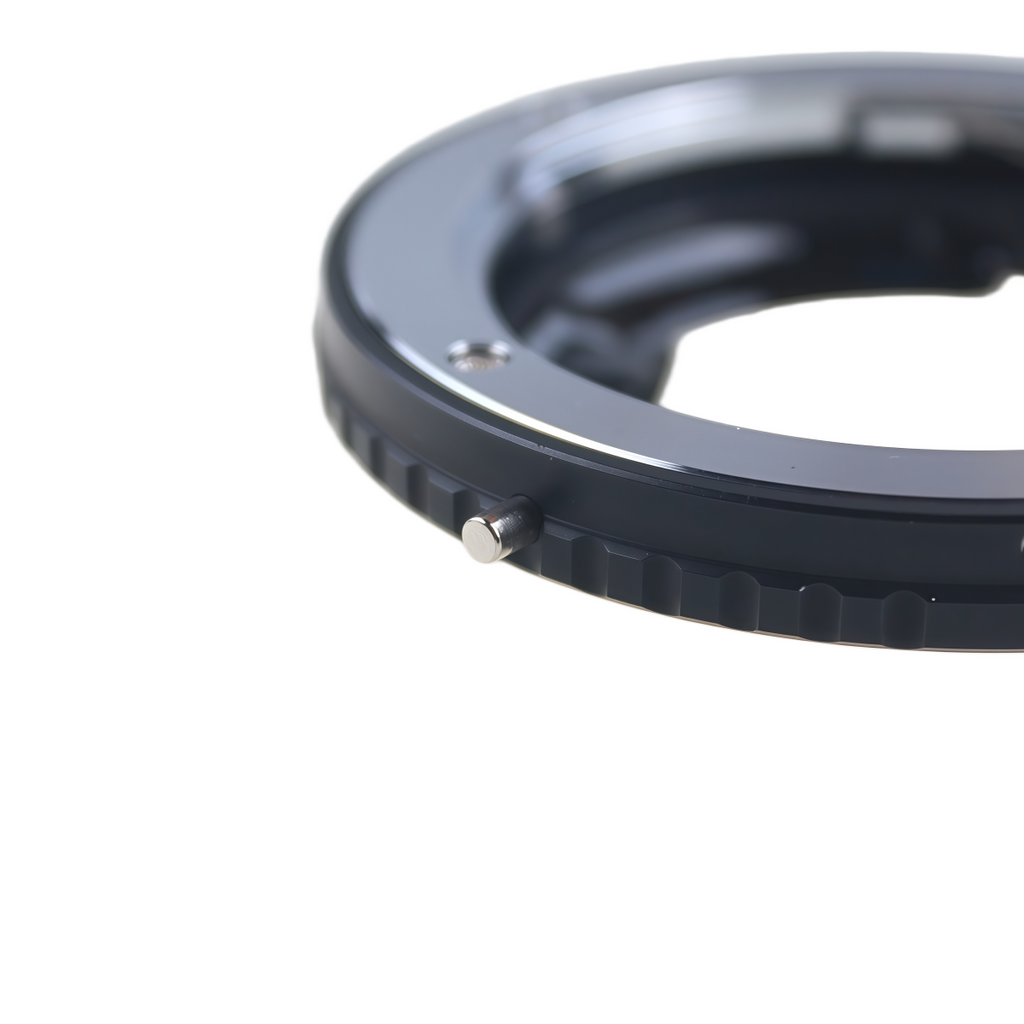

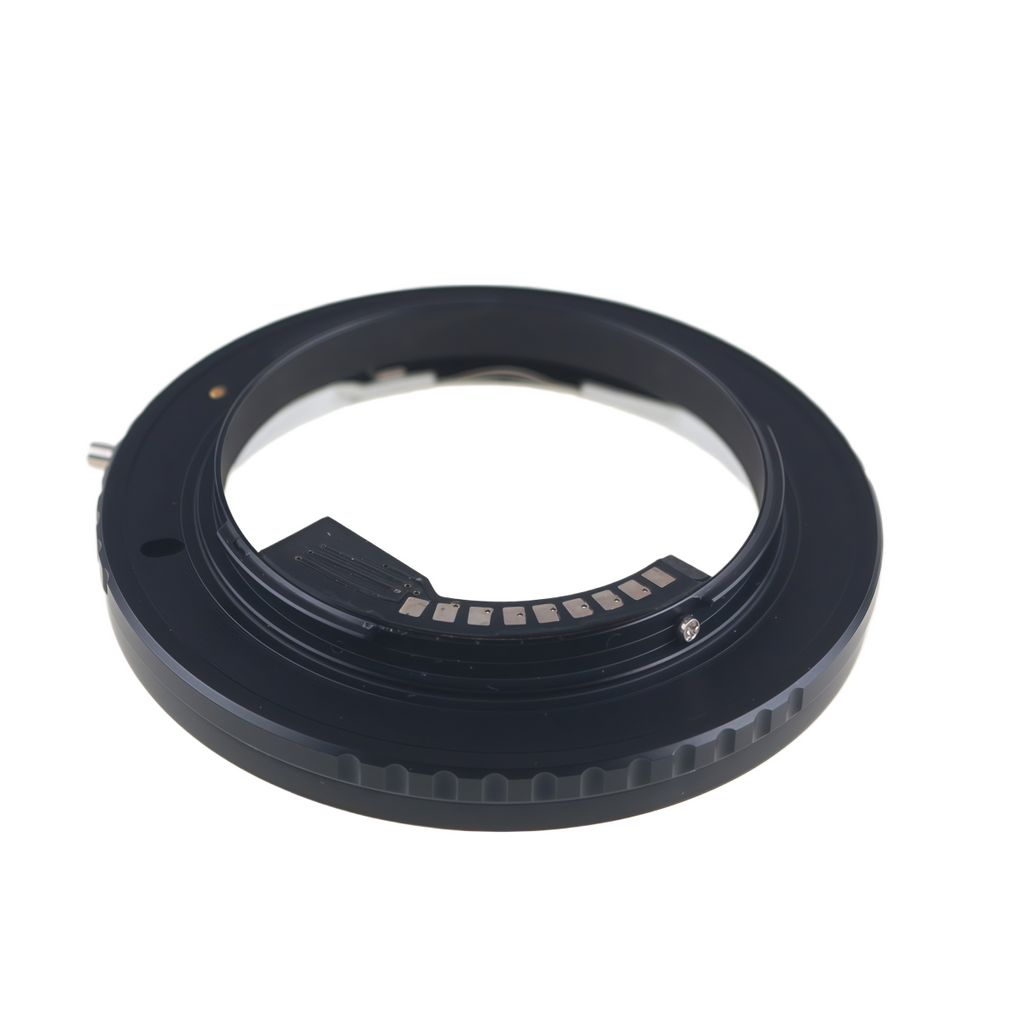

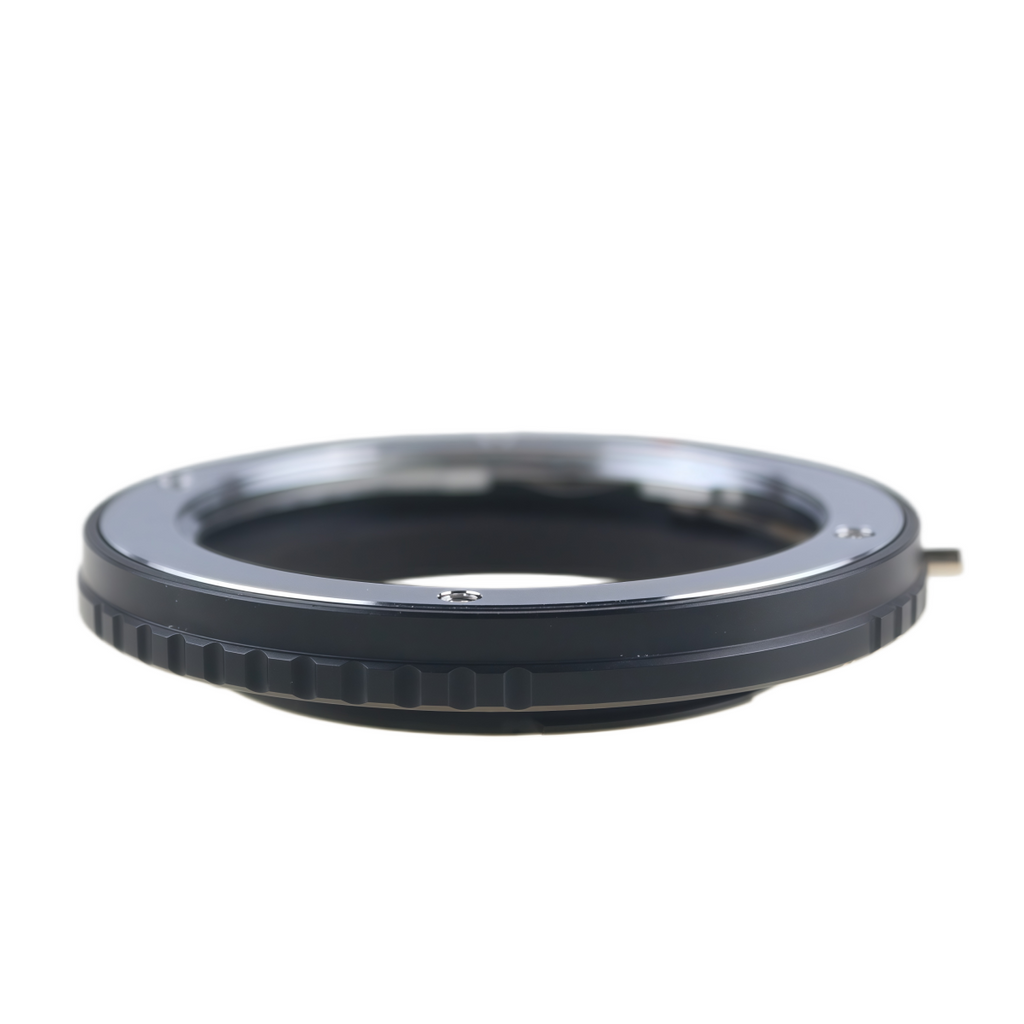

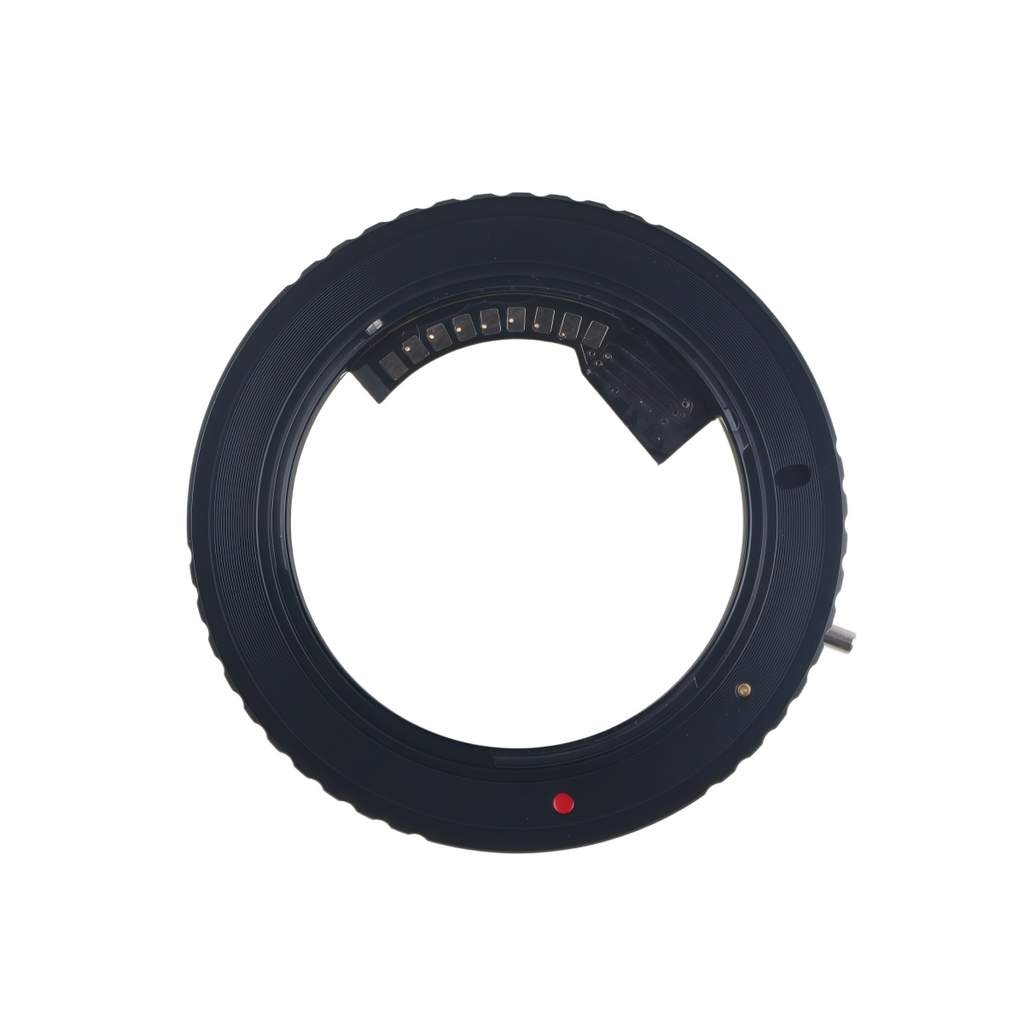

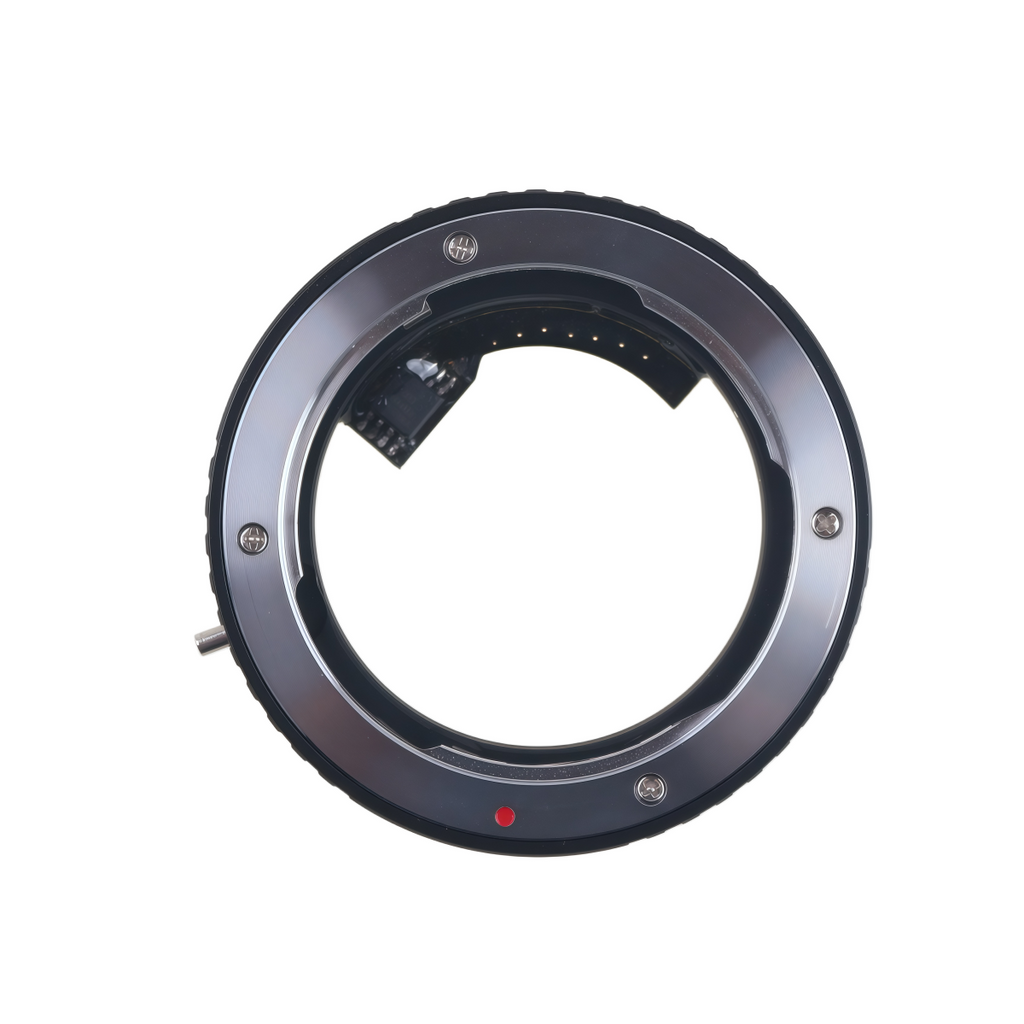

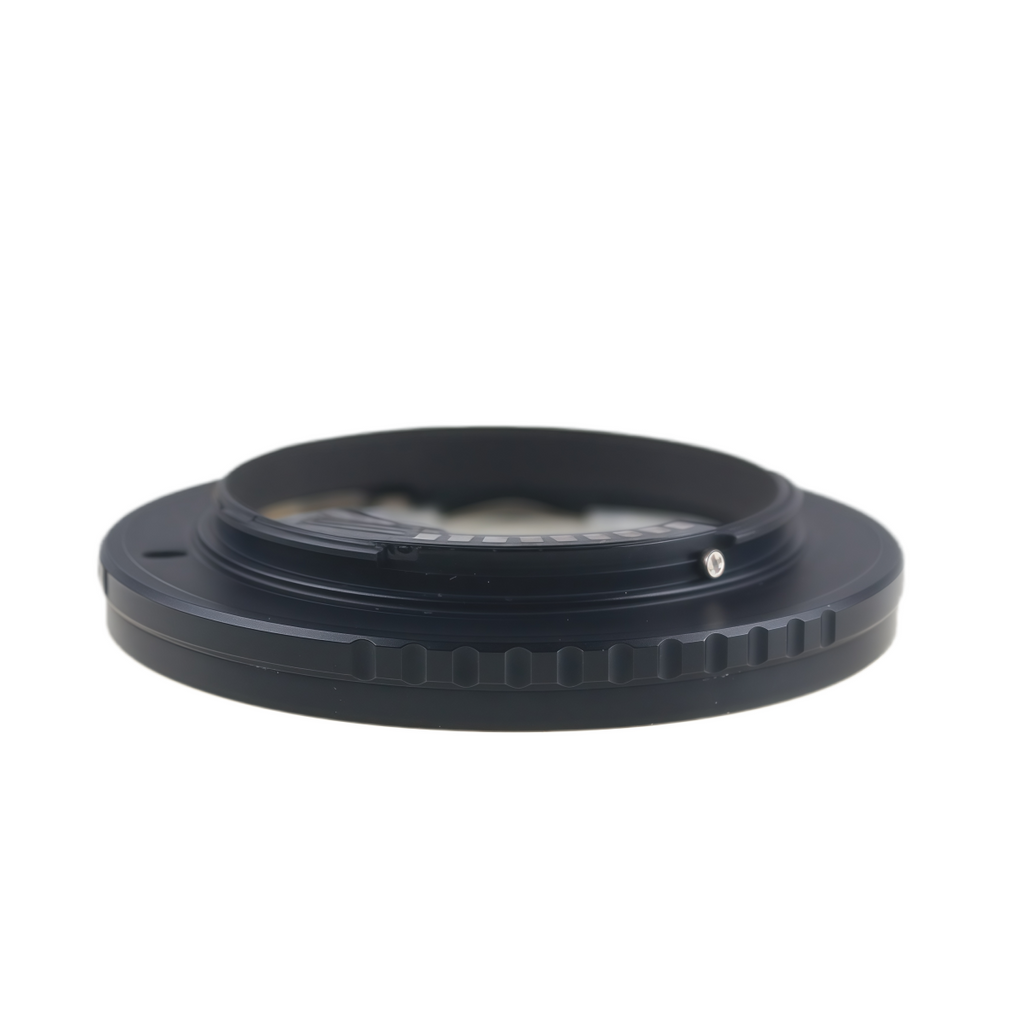

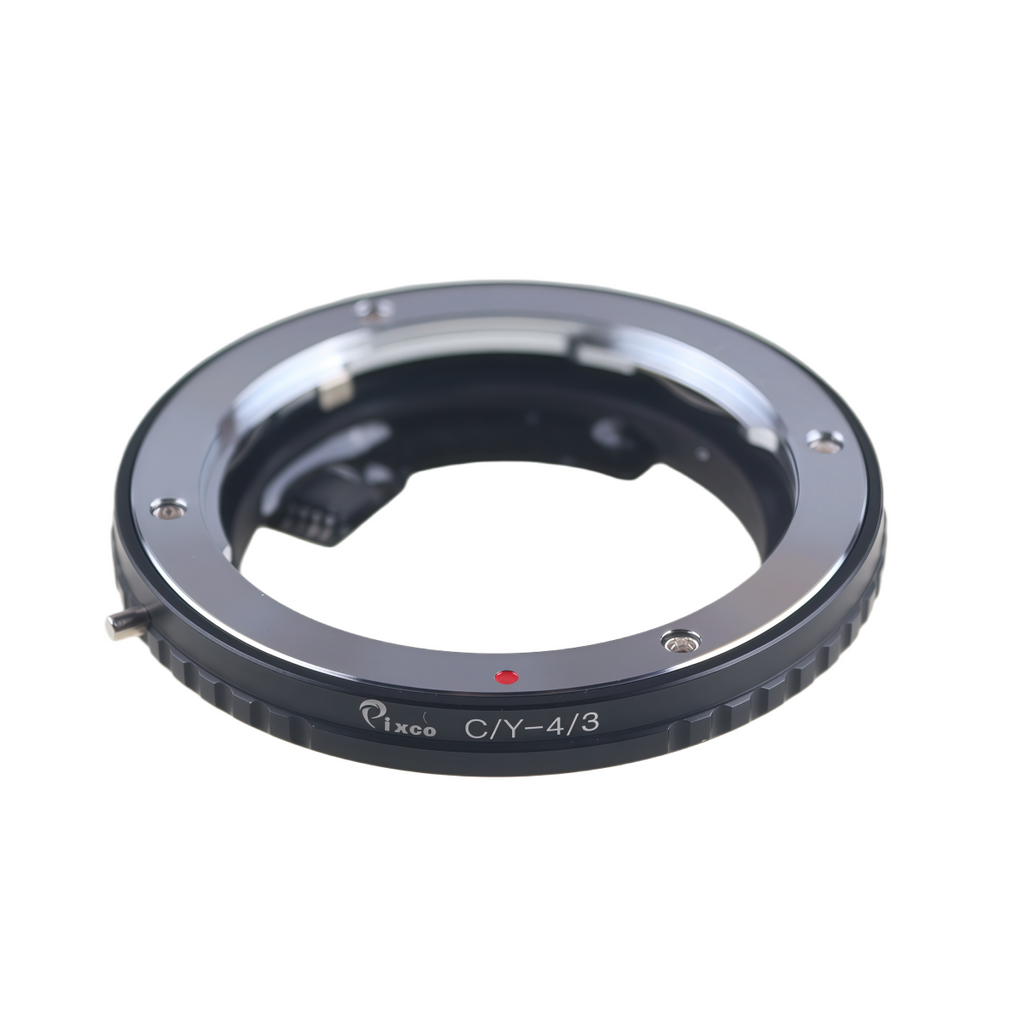

Pixco AF Confirm Mount Adapter Ring for Contax Yashica CY Lens to Olympus Four Thirds DSLR Camera with Focus Chip Infinity Focus Compatible with E-30 E-620
Product Description

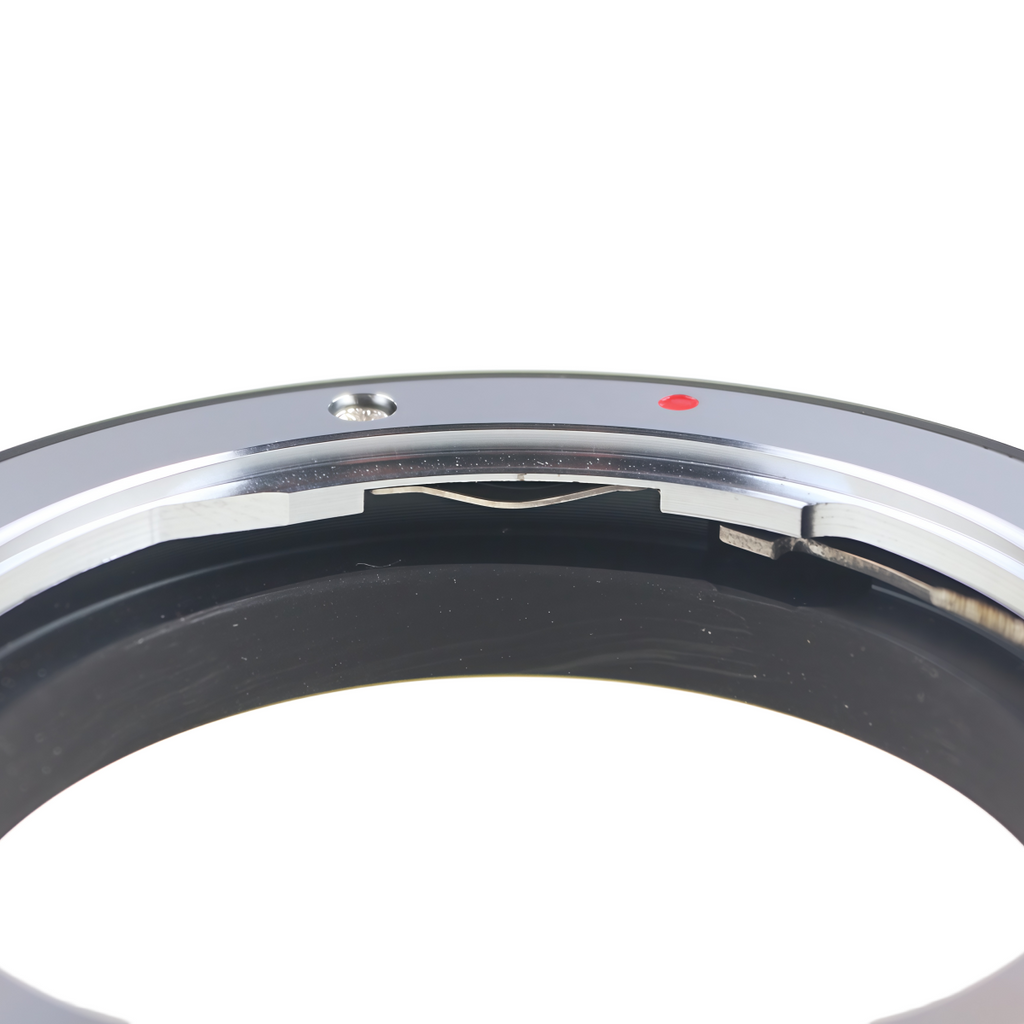

This manual adapter ring features a built-in AF confirmation chip, enabling the use of Contax Yashica CY-mount lenses on compatible Olympus Four Thirds system DSLR cameras. Precision-crafted from brass and aluminum, it ensures a solid connection. The integrated chip provides focus confirmation (audible beep or viewfinder indicator) when accurate manual focus is achieved, greatly enhancing focusing speed and accuracy. Crucially, this adapter is precision-engineered to support the full focus range, including infinity focus, making it versatile for various photography genres.
Key Features
1.AF Confirmation Chip: The built-in chip activates the focus confirmation signal (beep or indicator) in the viewfinder upon achieving precise manual focus, aiding in faster and more accurate focusing. (Note: This is a focus aid, NOT autofocus. Manual focusing via the lens ring is required).
2.Supports Infinity Focus: Meticulously machined to maintain the correct flange distance, allowing compatible lenses to achieve sharp focus at infinity, ideal for landscapes and architectural shots.
3.Fixed EXIF Data: The chip transmits fixed, non-programmable EXIF data (50mm F2.8) to the camera for file management. This data is preset and cannot be altered, and does not reflect the lens's actual parameters.
4.Precision Metal Construction: Combines a brass lens mount with an aluminum alloy body for a tight, secure, and durable connection that ensures shooting stability.
5.Fully Manual Operation: This is a non-electronic, mechanical adapter. All automatic functions are disabled. Aperture must be set manually via the lens's aperture ring, and stop-down metering is required for exposure measurement.
Compatibility List
Compatible Lenses: Contax Yashica CY-mount manual-focus lenses.
Compatible Cameras: Compatible Olympus Four Thirds system DSLR cameras, such as: E-30, E-620, E-520, E-510, E-500, E-450, E-420, E-410, E-400, etc.
Not Compatible With: Will NOT fit models including E-5, E-3, E-1, E-300, E-10, E-20N, E-20P.
Important Usage Notes
1.Required Camera Mode: Set your camera to Manual (M) mode or Aperture Priority (A) mode.
2.Manual Aperture Control: Aperture must be set manually using the lens's aperture ring.
3.Stop-Down Metering: As aperture data is not communicated, you must use stop-down metering. Press the camera's Depth-of-Field Preview button to meter at the shooting aperture.
4.Focusing and Shooting: Manually focus using the lens ring. Observe the AF confirmation indicator. Once the confirm signal activates, take the picture.
Package Includes
1 x AF Confirm Adapter for Contax Yashica CY to Olympus Four Thirds
