Pixco Mount Adapter Ring for Minolta MD Lens to Olympus Four Thirds DSLR Camera with AF Confirm Chip Infinity Focus Compatible with E-620
Product Description

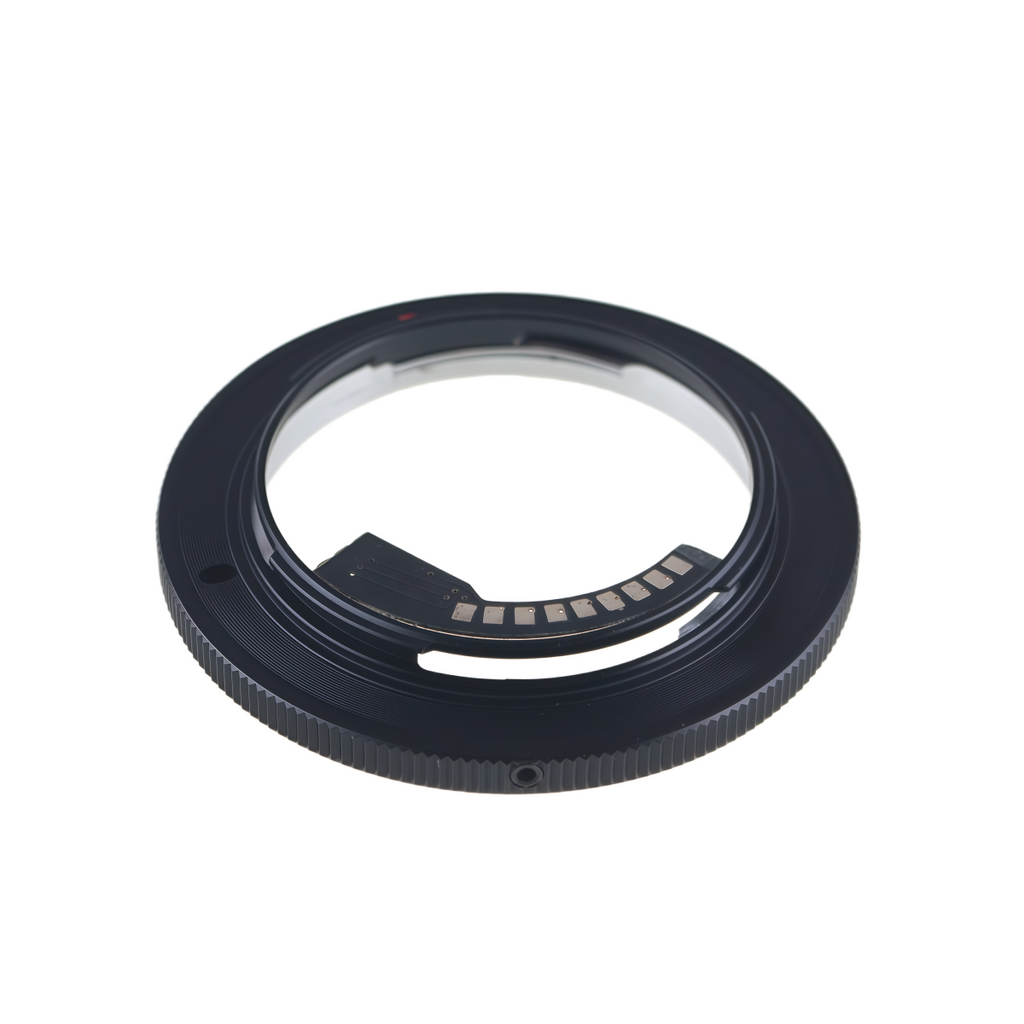

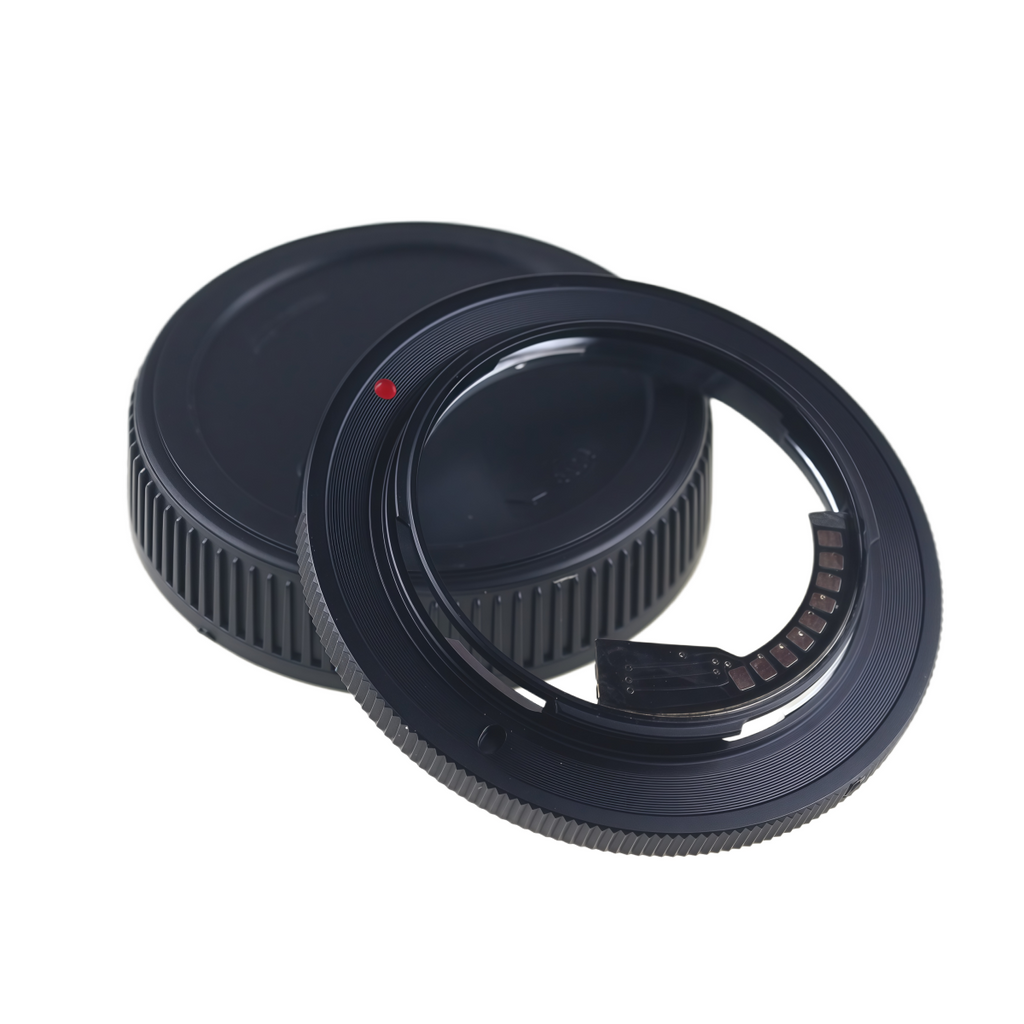

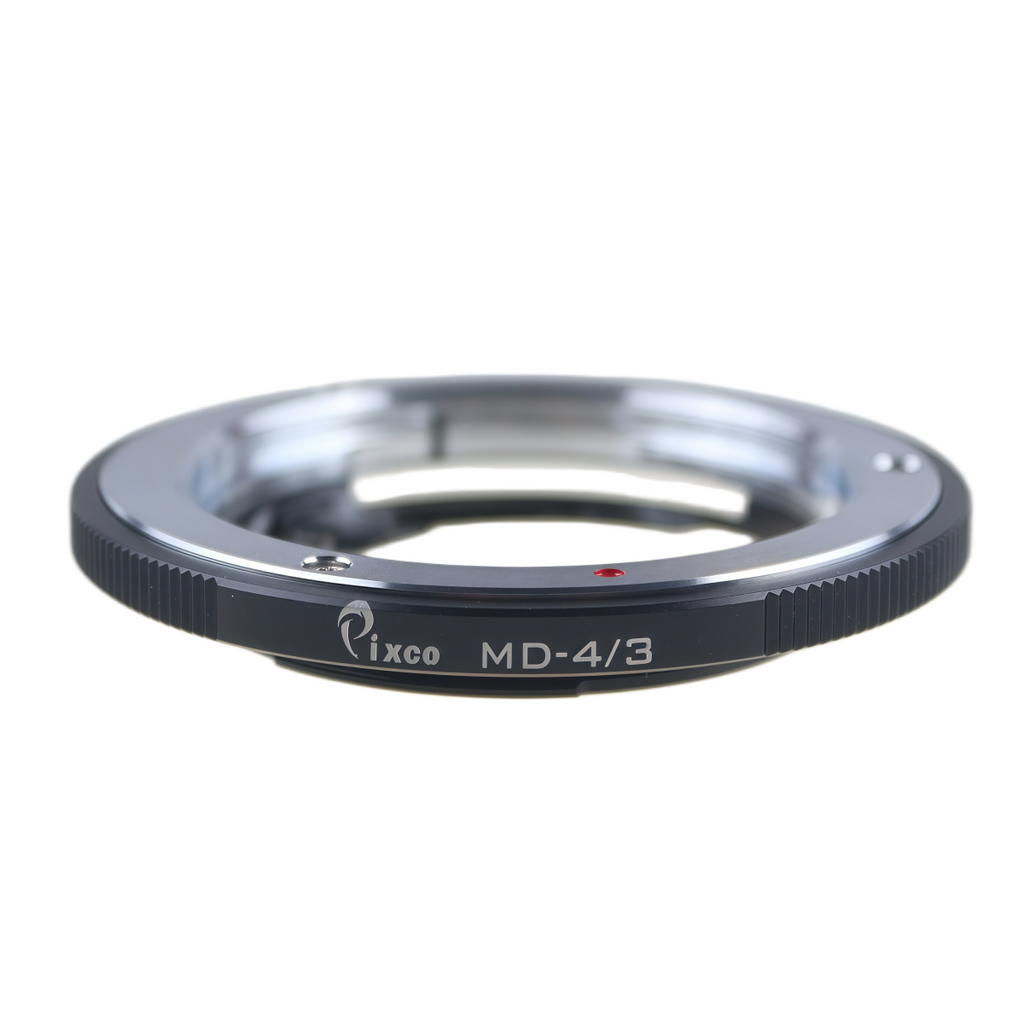

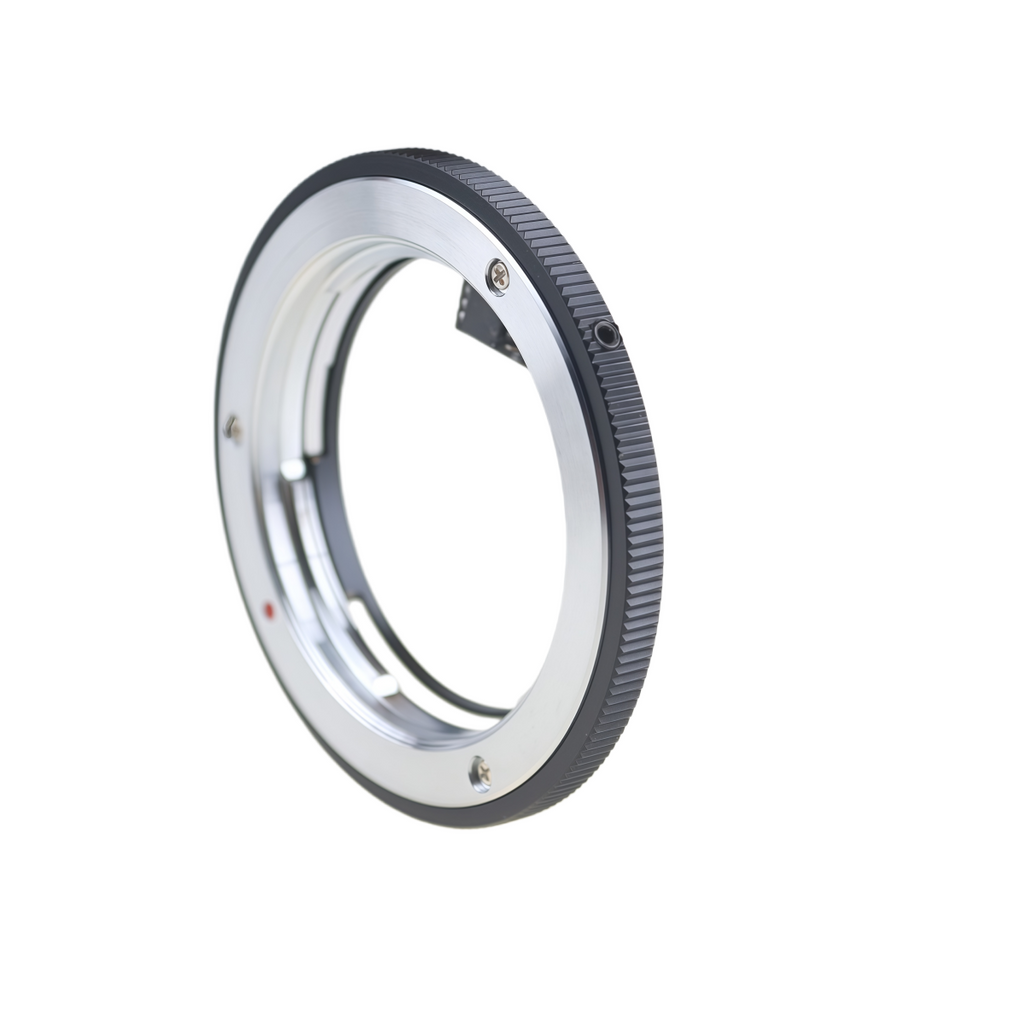

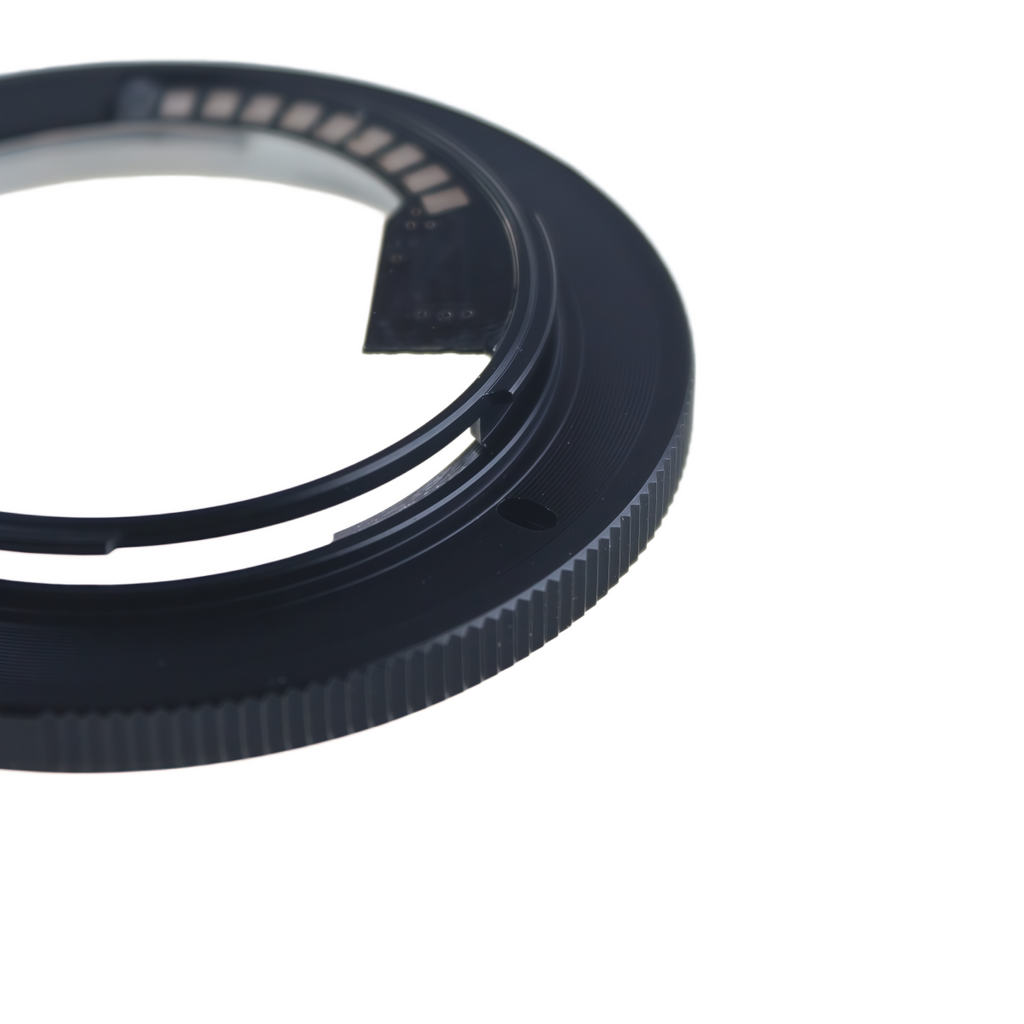

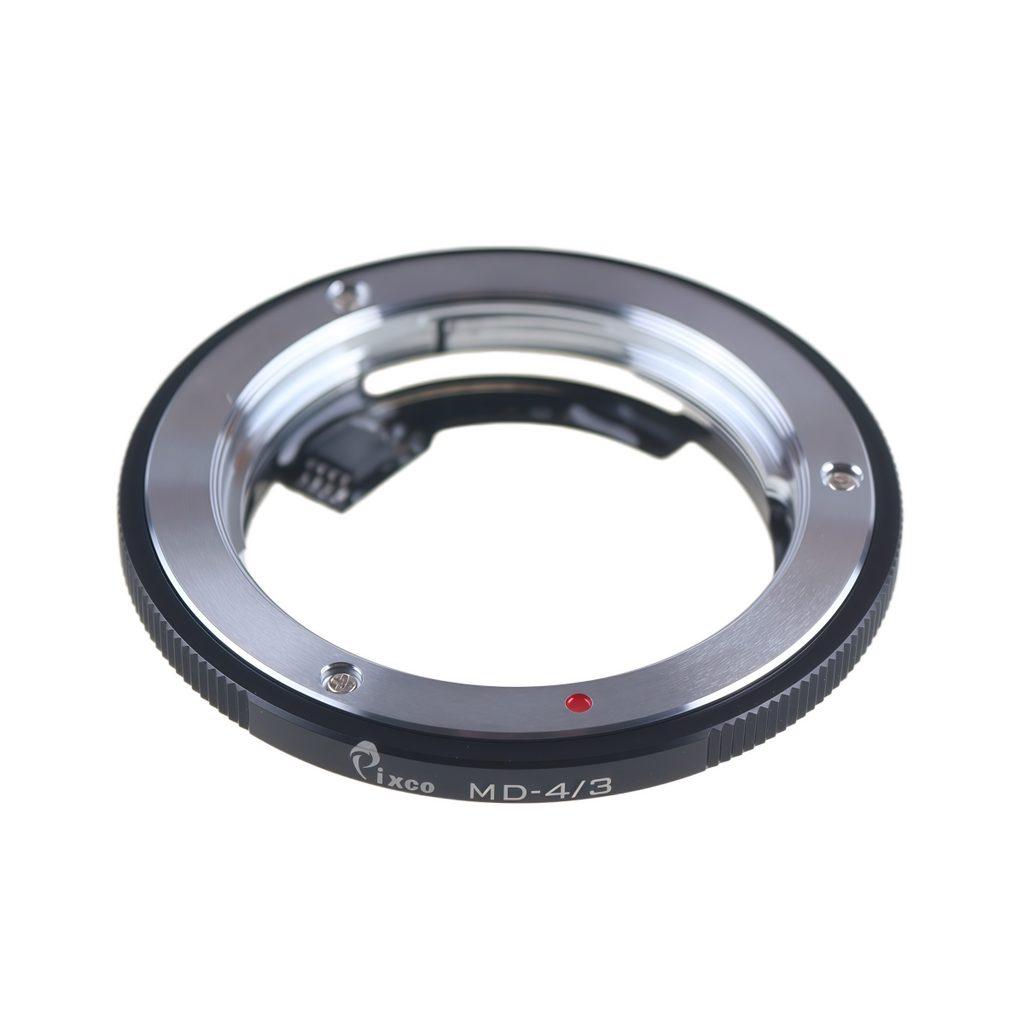

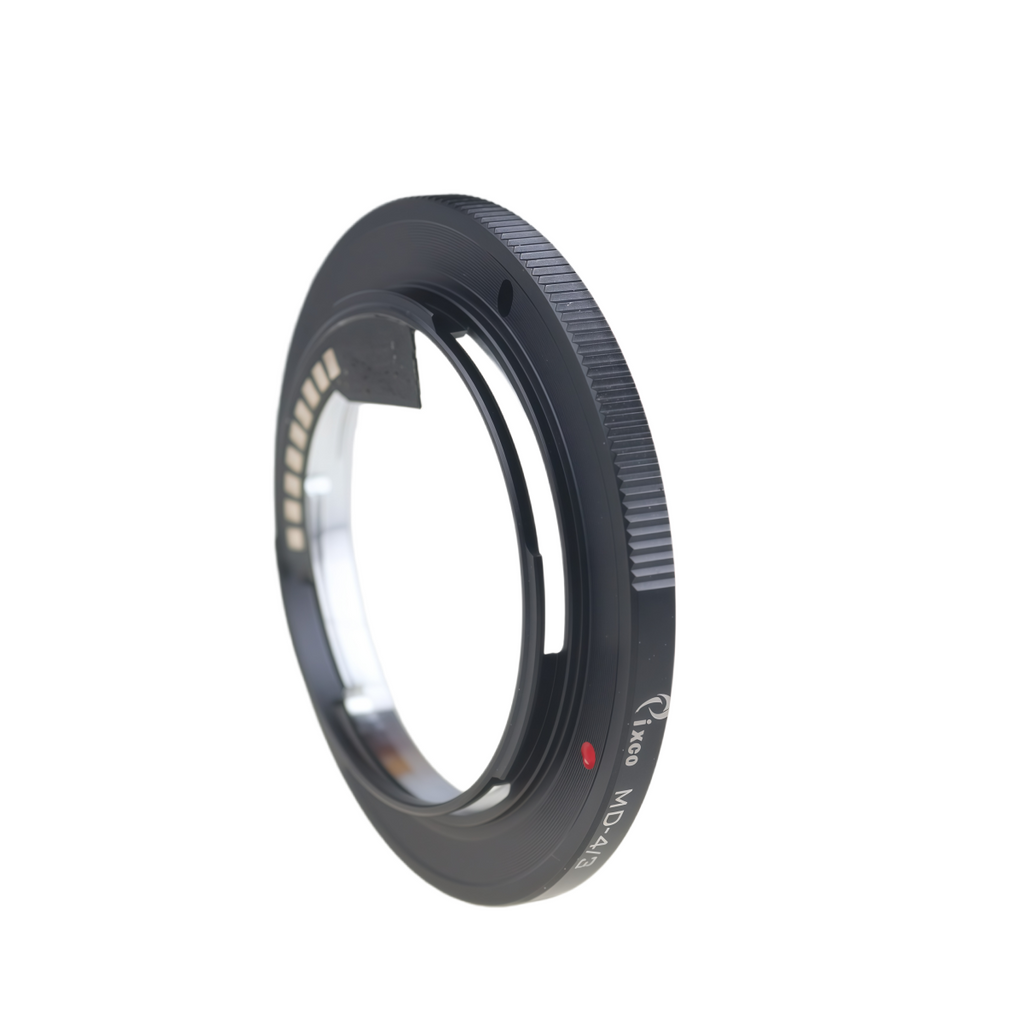

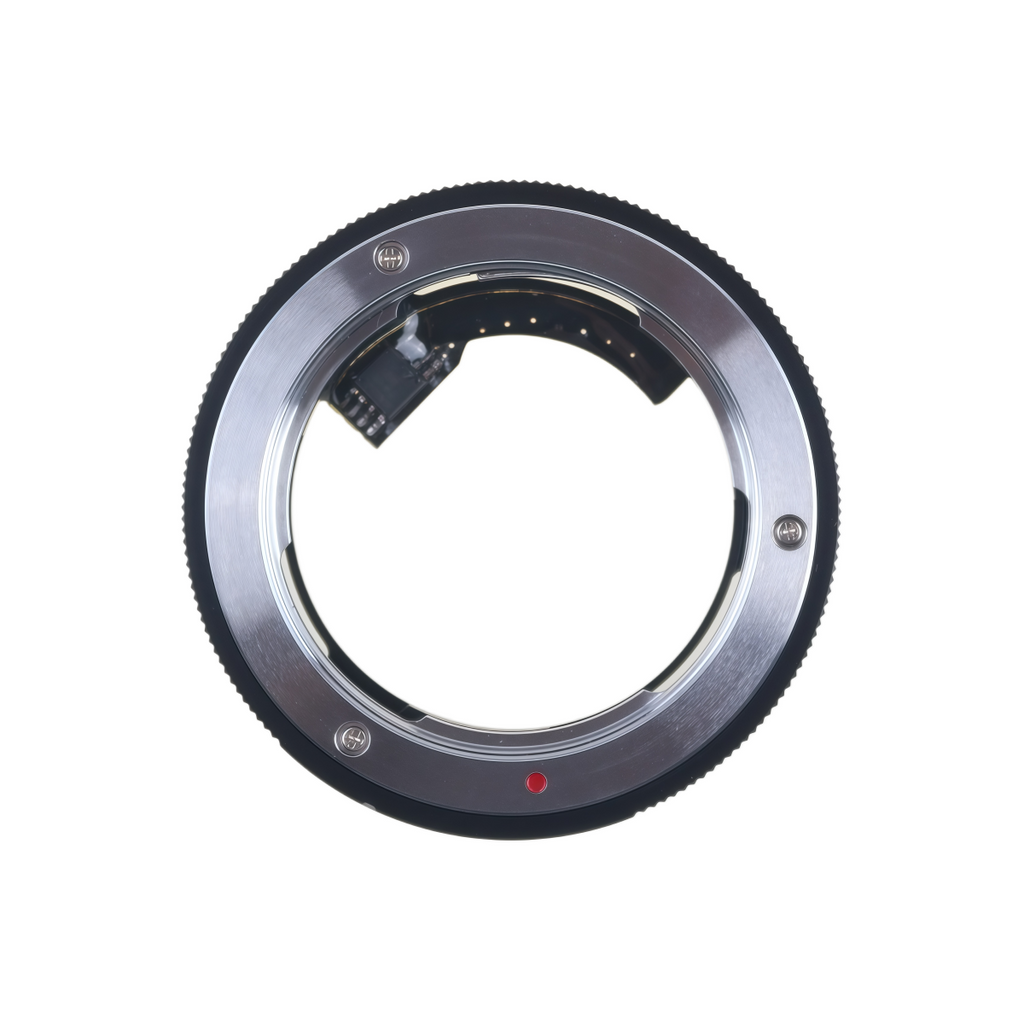

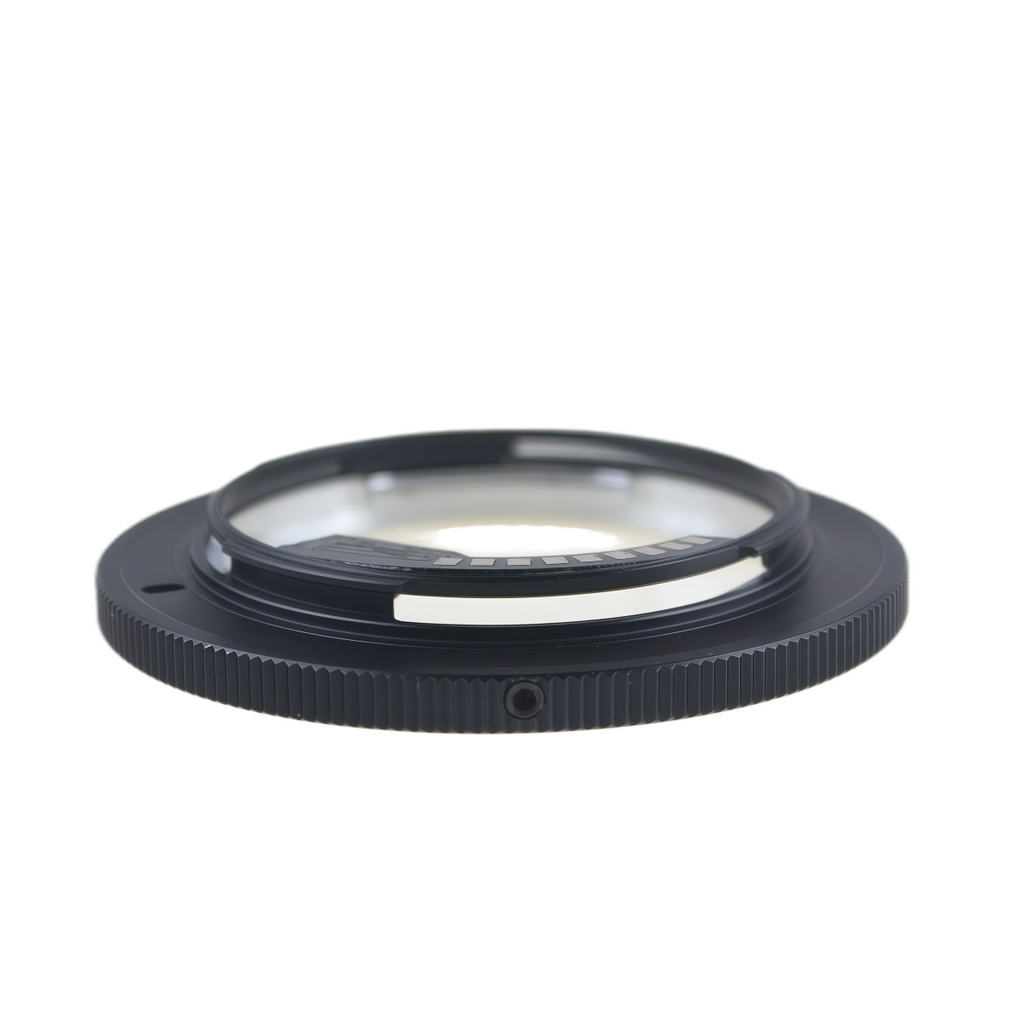

This manual adapter ring features a built-in focus confirmation chip, allowing you to mount Minolta MD-mount lenses onto compatible Olympus Four Thirds system DSLR cameras. Precision-machined from brass and aluminum alloy, it offers a durable and reliable connection. The integrated chip provides focus confirmation (viewfinder indicator or beep) when accurate manual focus is achieved, significantly improving focusing speed and accuracy. Importantly, this adapter is engineered to support infinity focus, making it suitable for a wide range of photography from close-ups to distant subjects.
Key Features

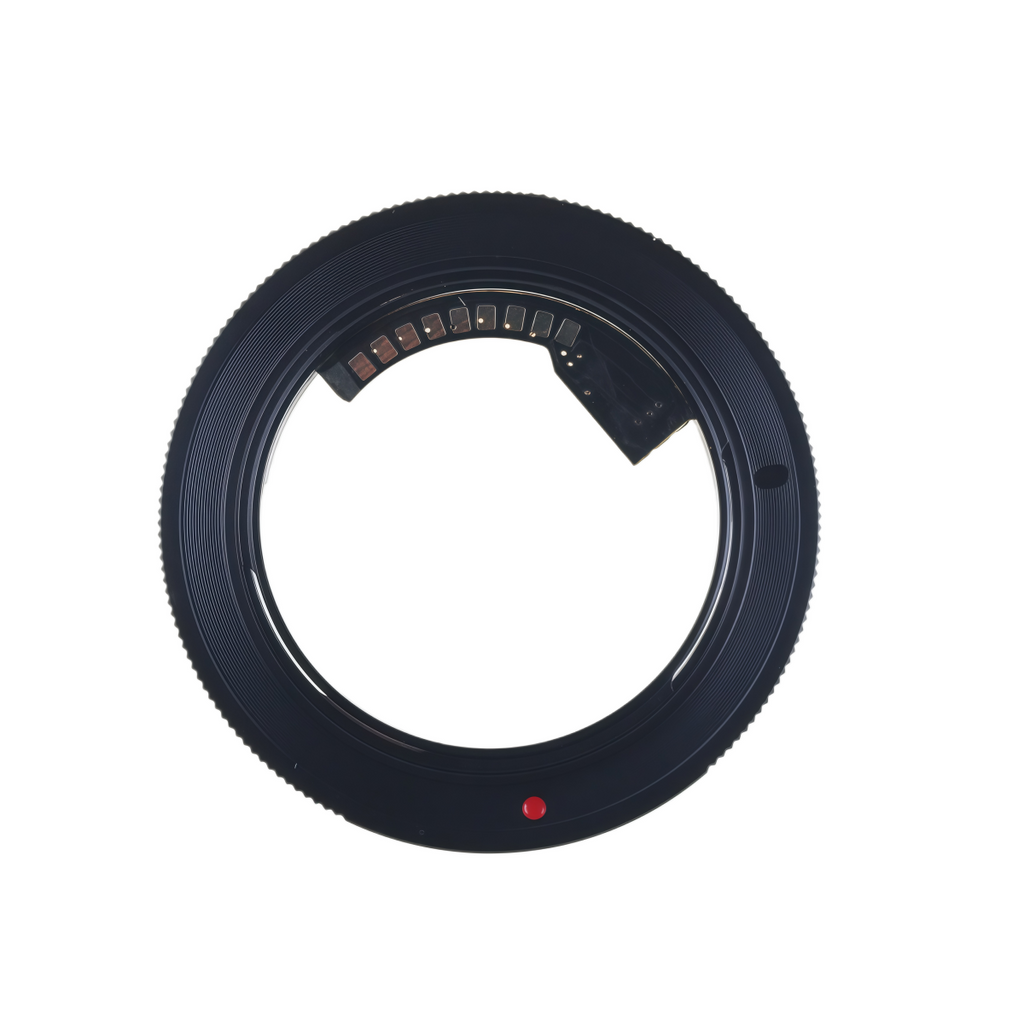

1.Focus Confirmation Chip: Activates the focus confirmation signal in the viewfinder (or an audible beep) upon achieving precise manual focus, aiding in faster and more accurate focusing. (Note: This is a focus aid, NOT autofocus. Manual focusing via the lens ring is required).
2.Infinity Focus Support: Precisely machined to maintain the correct flange distance, enabling compatible lenses to achieve sharp focus at infinity, ideal for landscapes.
3.Fixed EXIF Data: The chip transmits fixed, non-programmable EXIF data (50mm, F2.8) to the camera for file management. This data is preset and cannot be changed, and does not reflect the lens's actual parameters.
4.Fully Manual Operation: This is a non-electronic, mechanical adapter. All automatic functions are disabled. You must set the aperture manually using the lens's aperture ring and employ stop-down metering for exposure.
5.Metal Construction: Combines a brass lens mount with an aluminum body for a secure, wobble-free connection that ensures shooting stability.
Compatibility List
Compatible Lenses: Minolta MD-mount manual focus lenses.
Compatible Cameras: Compatible Olympus Four Thirds system DSLR cameras, such as: E-620, E-520, E-510, E-500, E-450, E-420, E-410, E-400, etc.
Not Compatible With: Will NOT fit models including E-30, E-5, E-3, E-1, E-300, E-10, E-20N, E-20P.
Important Usage Notes
1.Camera Mode: Set your camera to Manual (M) mode or Aperture Priority (A) mode.
2.Manual Aperture Control: Aperture must be set manually using the lens's aperture ring.
3.Stop-Down Metering: As aperture data is not communicated, you must use stop-down metering. Press the camera's Depth-of-Field Preview button to meter at the set shooting aperture.
4.Focusing and Shooting: Manually focus using the lens ring. Observe the focus confirmation indicator. Once the signal activates, take the picture.
Package Includes
1 x Focus Confirm Adapter for Minolta MD to Olympus Four Thirds
