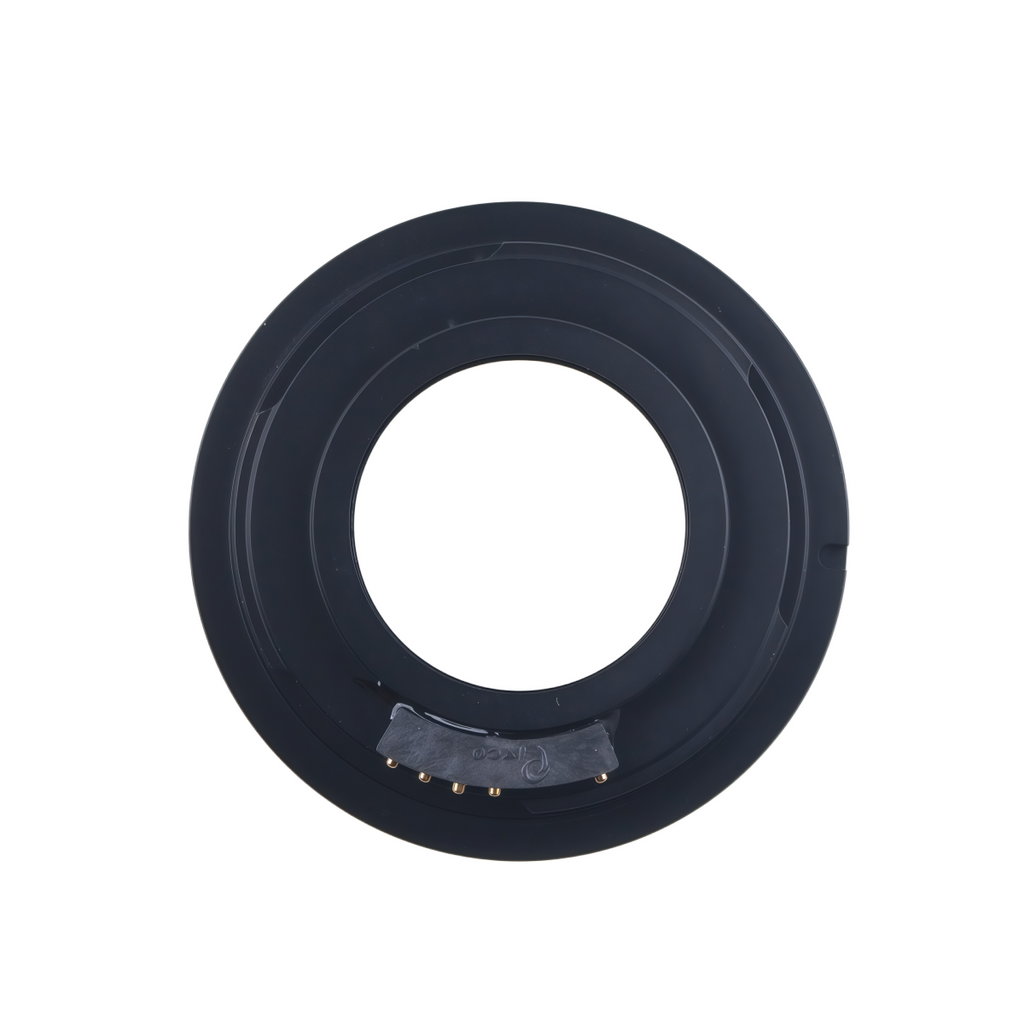

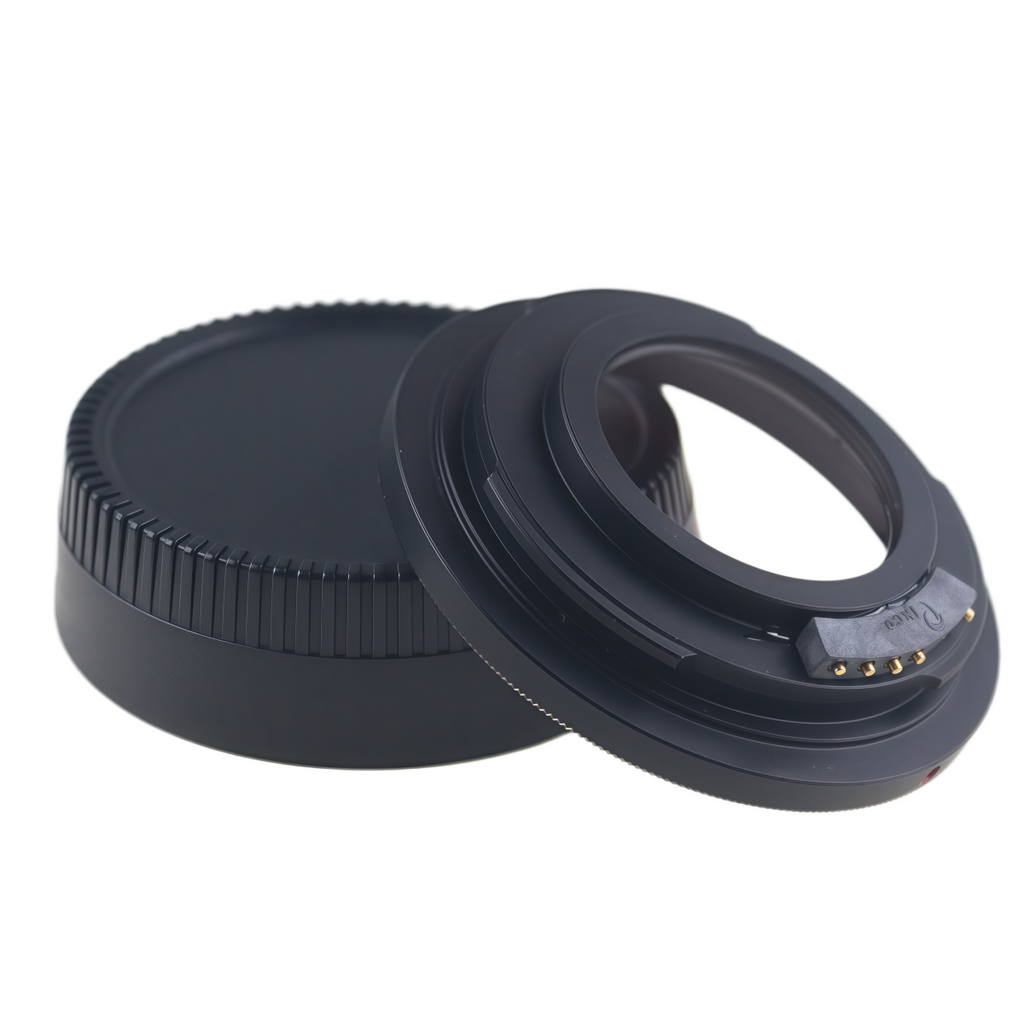

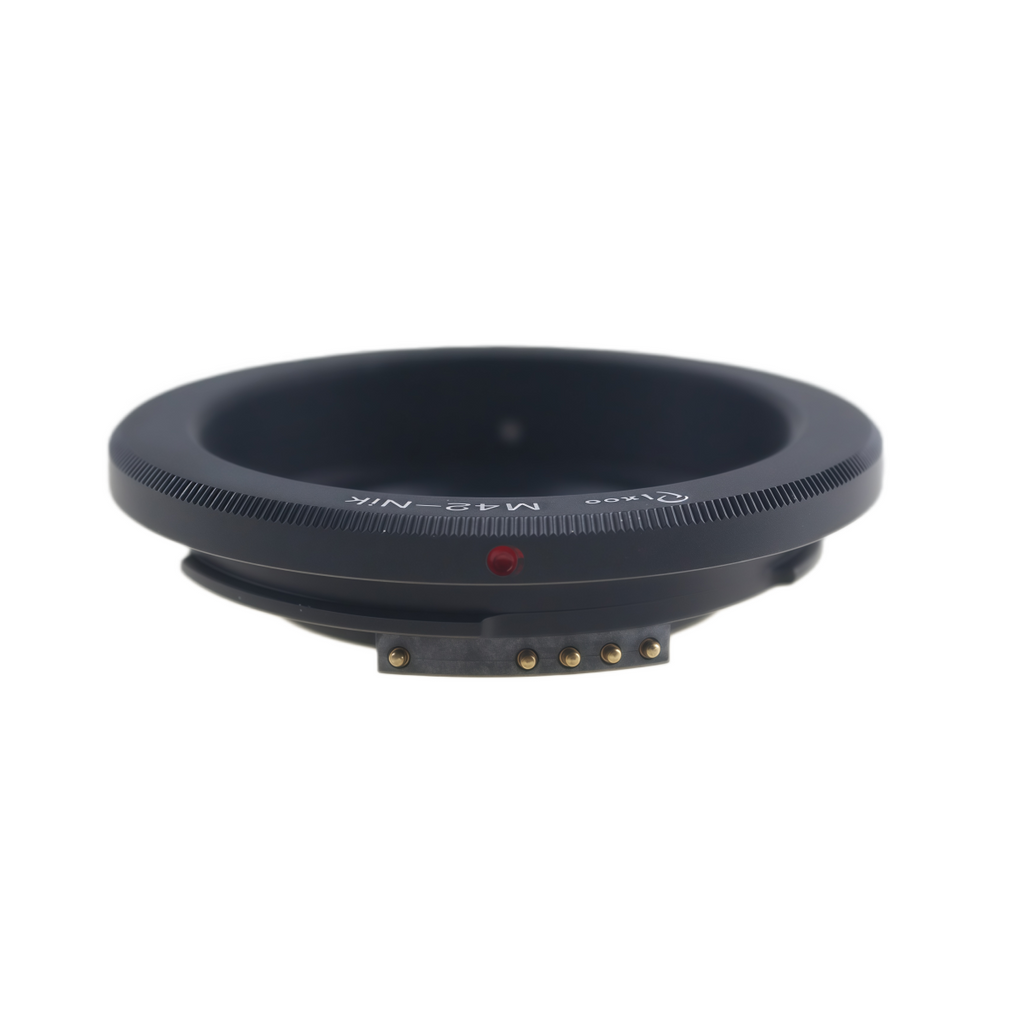

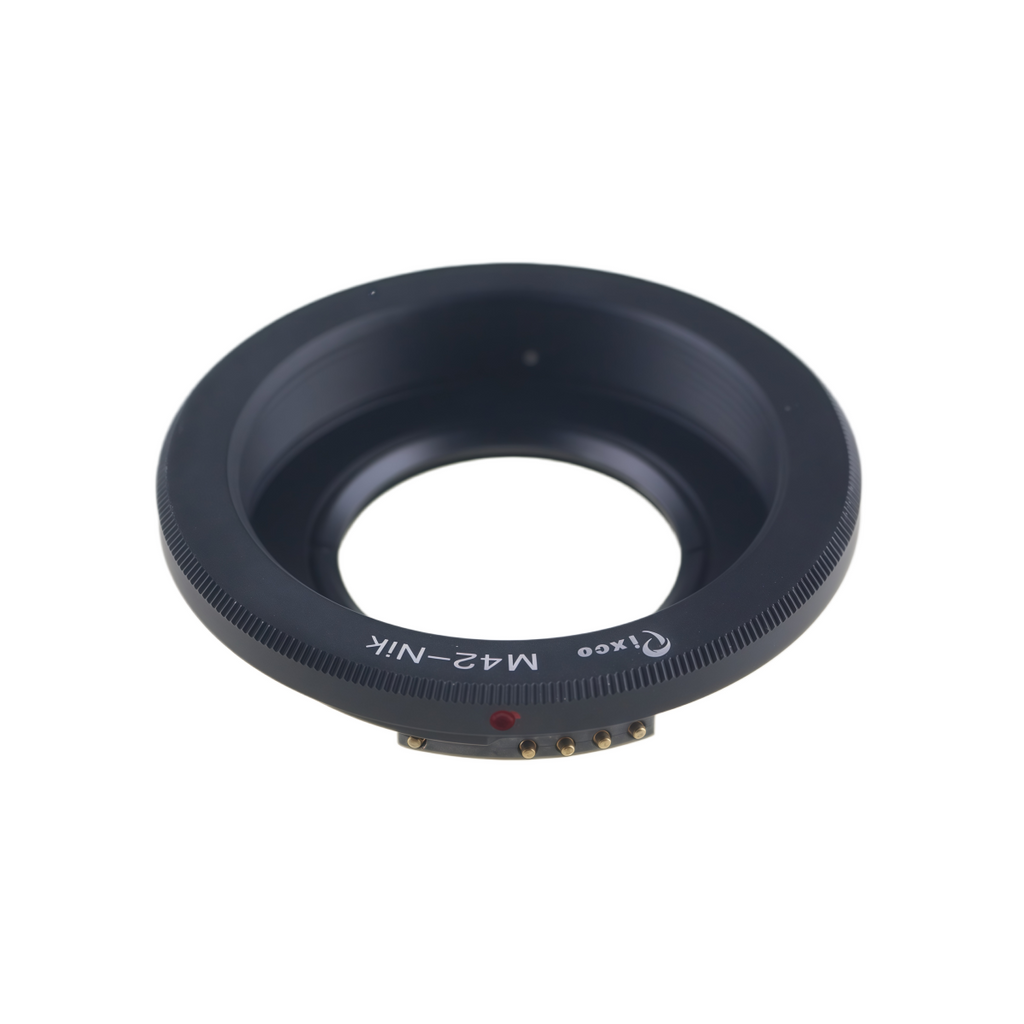

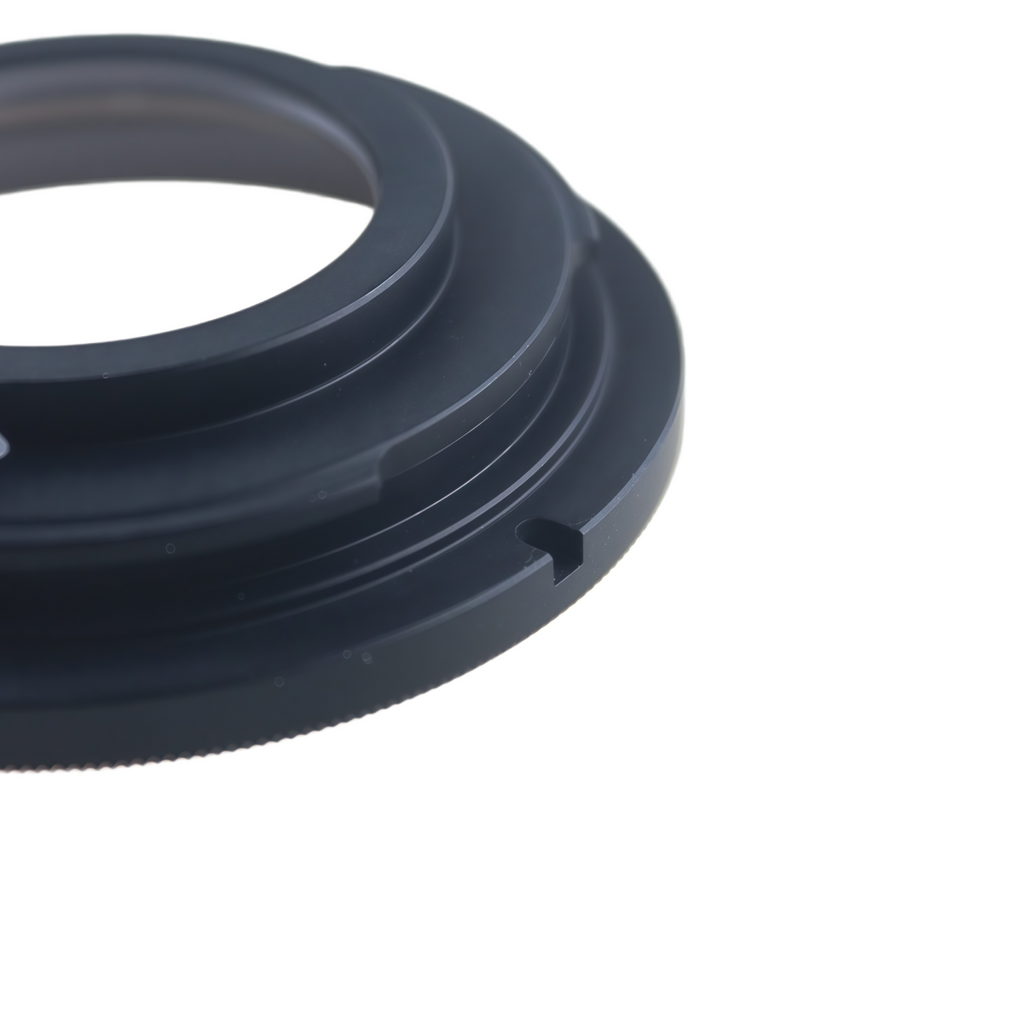

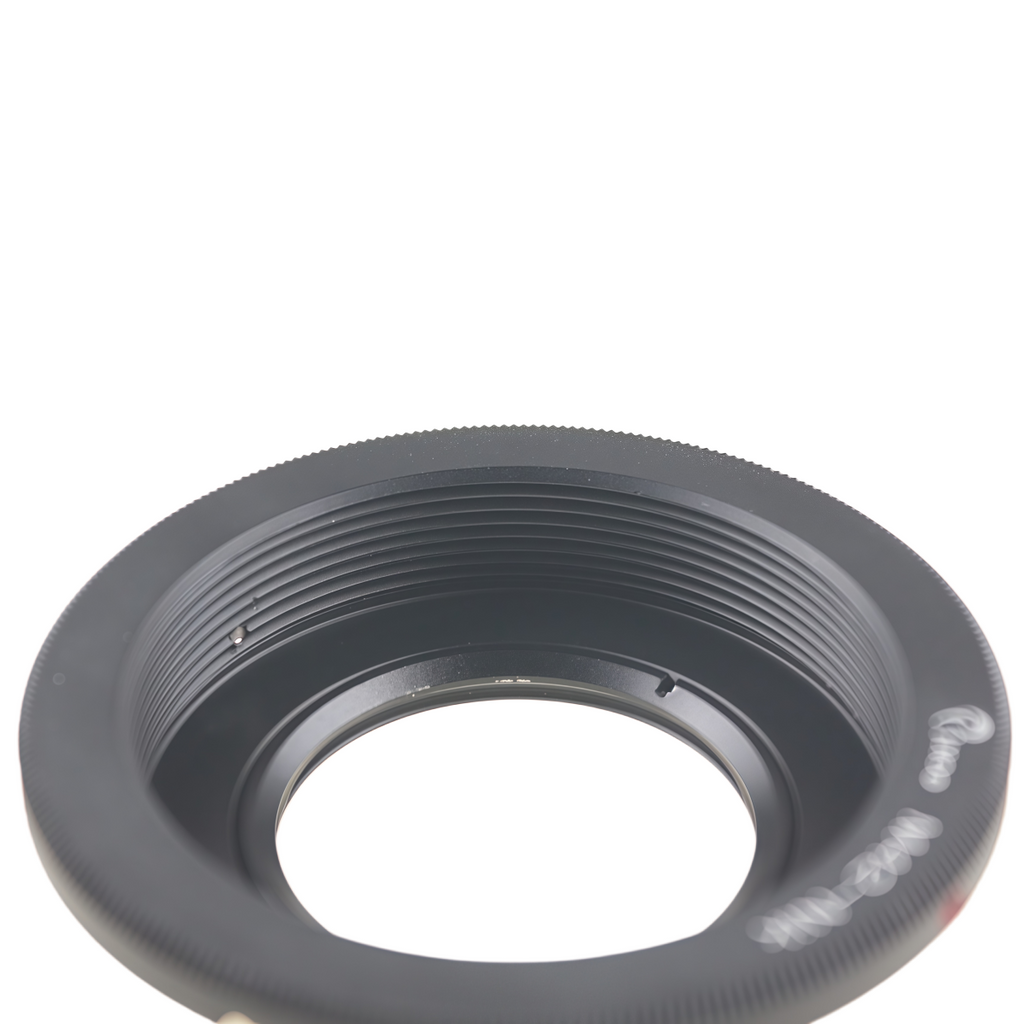

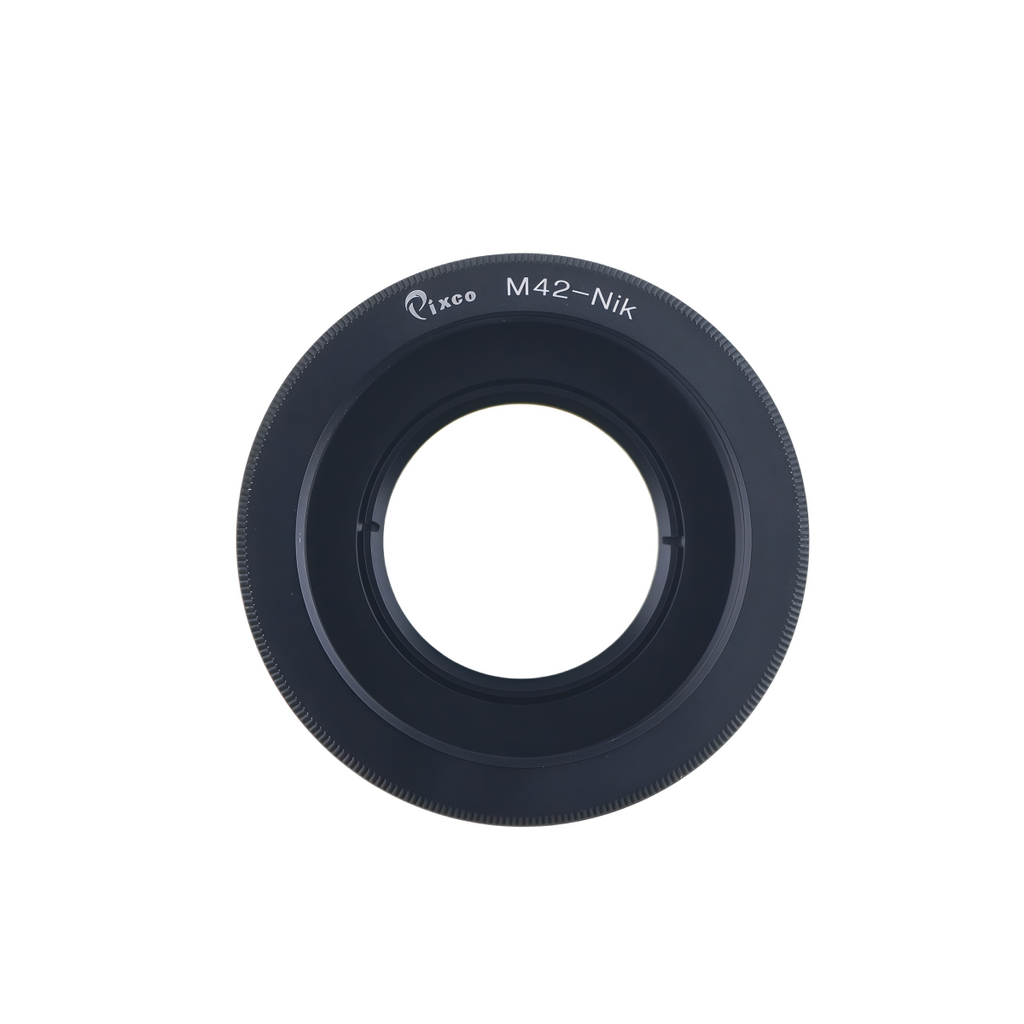

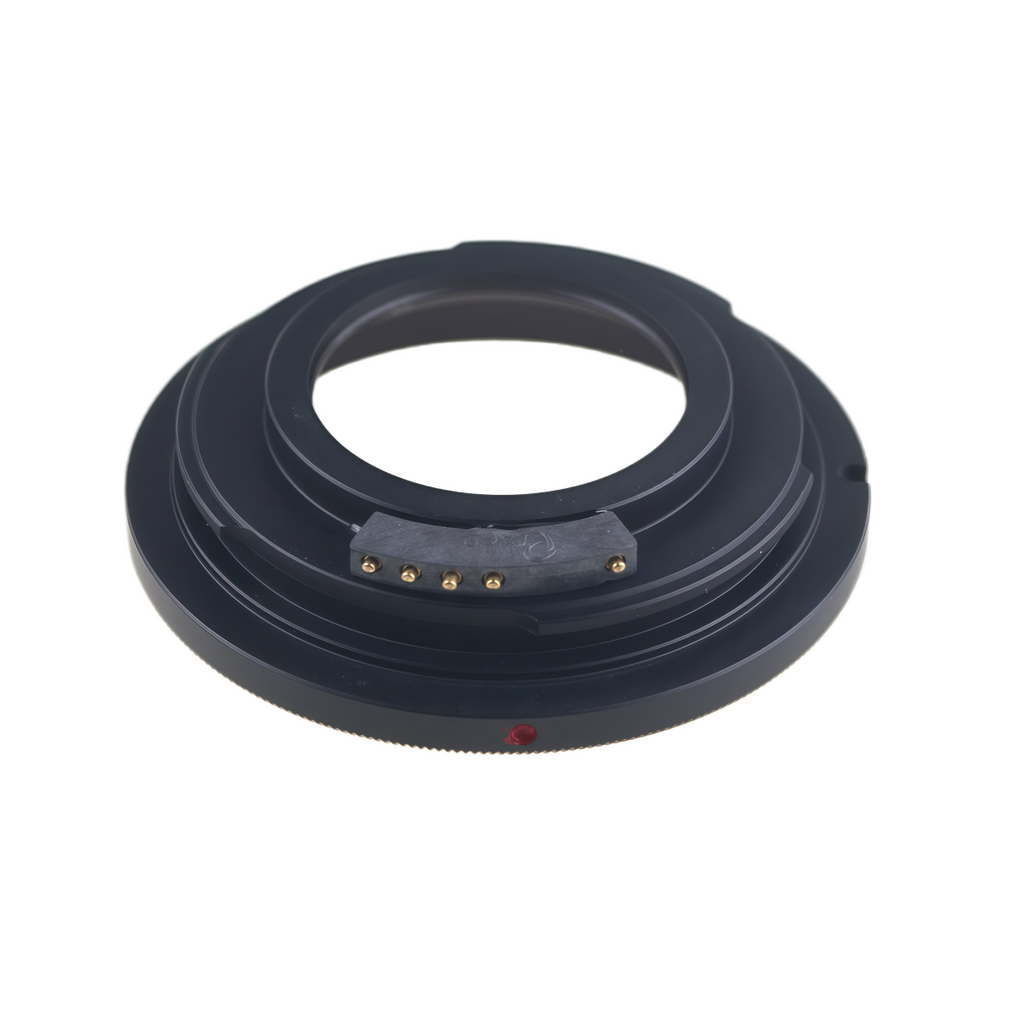

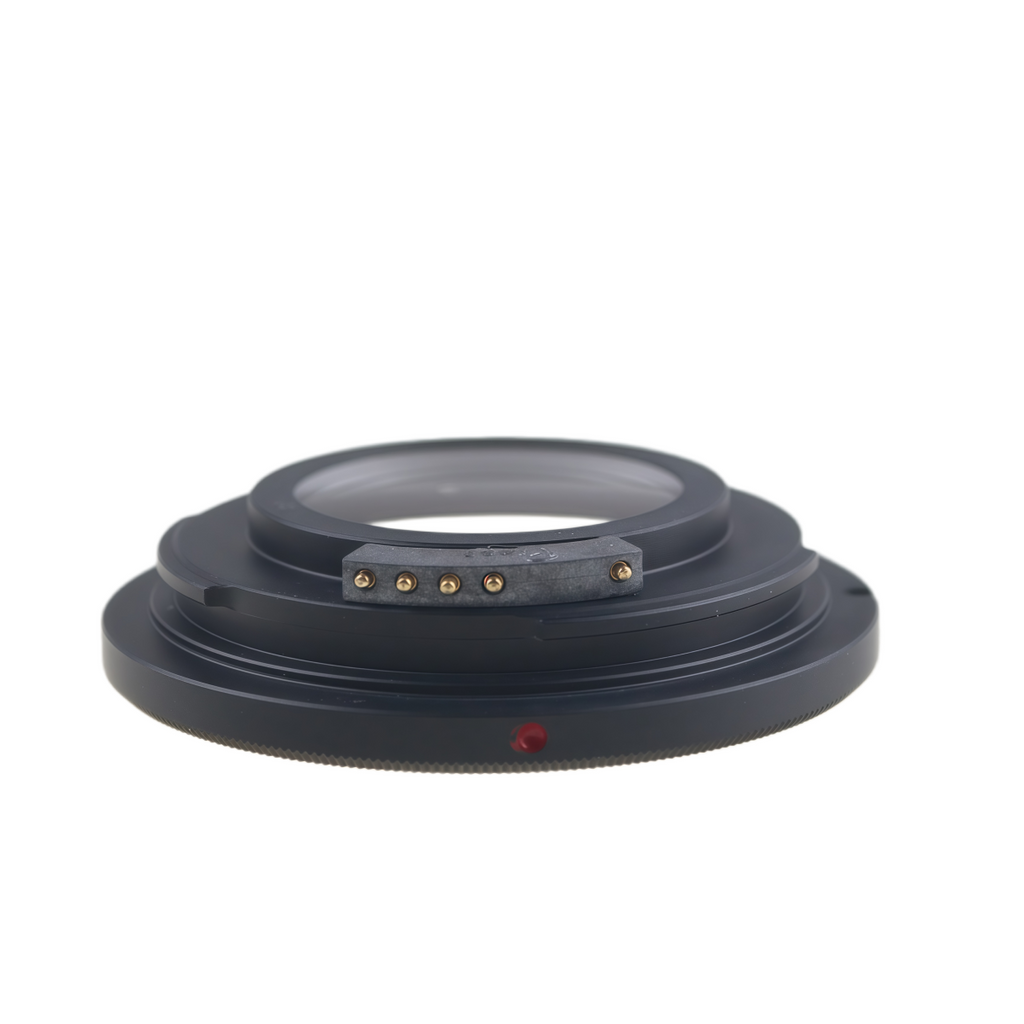

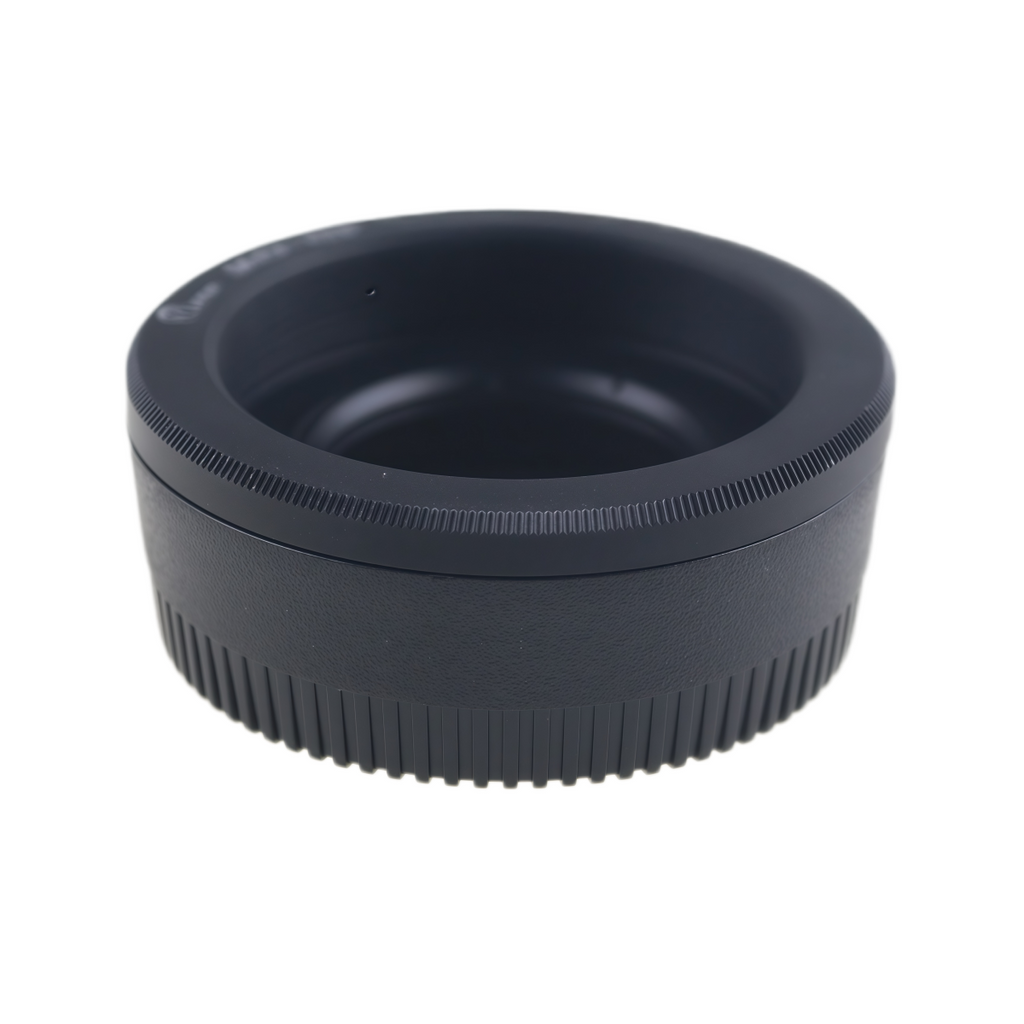

Pixco Mount Adapter Ring with AF Confirm Chip for M42 Lens to Nikon F DSLR Camera with Glass Element D780 D850
Description:
This innovative adapter is engineered to connect M42 screw-mount lenses to Nikon F mount DSLR cameras. Featuring a built-in optical correction lens and an electronic chip, it not only guarantees accurate infinity focus but also provides focus confirmation assistance (the focus indicator “●” in the viewfinder or on-screen) on compatible Nikon DSLRs when manually focusing, greatly enhancing the usability and shooting experience with classic lenses.
Key Features & Characteristics:
1.Supports Focus Confirmation: The built-in electronic chip enables focus confirmation assistance on supported Nikon DSLRs, providing visual cues (the “●” indicator) to aid precise manual focusing.
2.Built-in Optical Glass for Infinity Focus: Integrates a precision optical element to accurately compensate for the flange distance difference between systems, ensuring reliable infinity focus after adaptation.
3.Chip Parameter Note: The chip's data is fixed at F2.8, 50mm focal length and is not programmable or changeable. This data is used only to activate the camera's focus confirmation function and does not affect the actual aperture or focal length of the image.
4.Precision All-Metal Build: The mounts are crafted from metal, precision-machined and chrome-plated for durability and a solid, wobble-free connection.
5.Fully Manual Operation: This is a mechanical adapter with a communication chip. All automatic functions (auto aperture/AE metering, autofocus, VR) are disabled. Full manual focus (MF), Manual (M) exposure mode, and aperture setting via the lens's aperture ring are required.
Important Usage Notes:
1.Core Functionality: This adapter provides infinity focus via an optical element and focus confirmation via a chip. All exposure parameters must be set manually.
2.Camera Setting: Ensure your camera supports and has focus confirmation enabled for non-CPU lenses. The "Shoot without lens" option may also need to be enabled depending on the model.
3.Operation & Limitation: Focusing is fully manual. The chip's fixed parameters (F2.8, 50mm) are solely for triggering focus confirmation; the actual aperture and focal length are determined by the lens settings. Use the camera in Manual (M) mode.
Compatibility Information:
Lens Side: M42×1 screw-mount lenses.
Critical Compatibility Warning: Takumar lenses, or ANY M42 lens with a protruding, non-retractable aperture lever/pin, is NOT compatible with this adapter. Please inspect the rear of your lens carefully before installation to avoid damage.
Camera Side: Nikon F mount digital SLR cameras that support focus confirmation with non-CPU lenses.
Compatible Models (Including but not limited to):
Recent Models: D780, D850, D6, D500, D7500, D5600.
Other Models: D5, D810, D750, D7200, D7100, D7000, D610, D600, D5500, D5300, D5200, D5100, Df, D3300, D3200, D3100, etc.
Package Includes:
M42 to Nikon F Mount AF Confirm Adapter with Glass Element × 1
